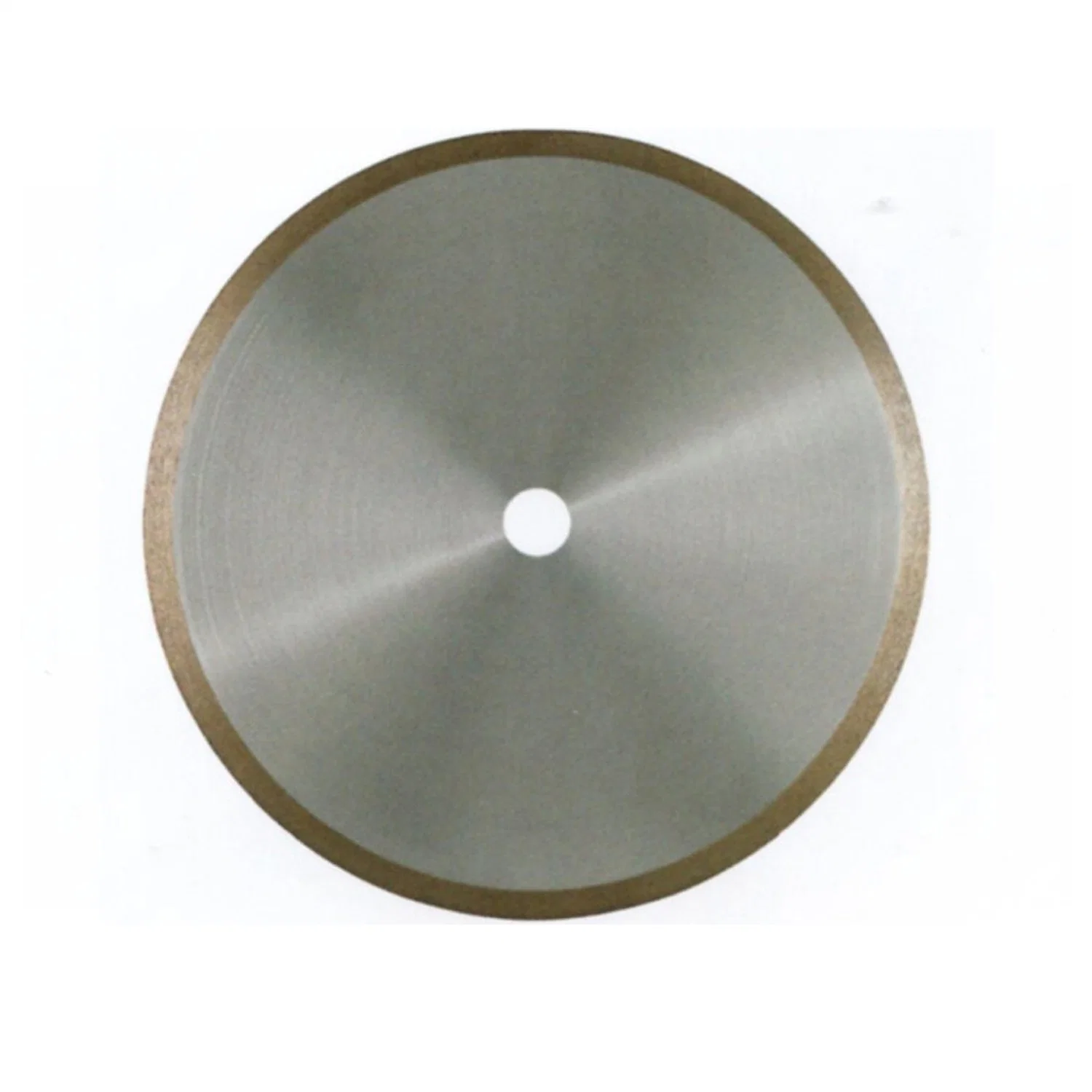

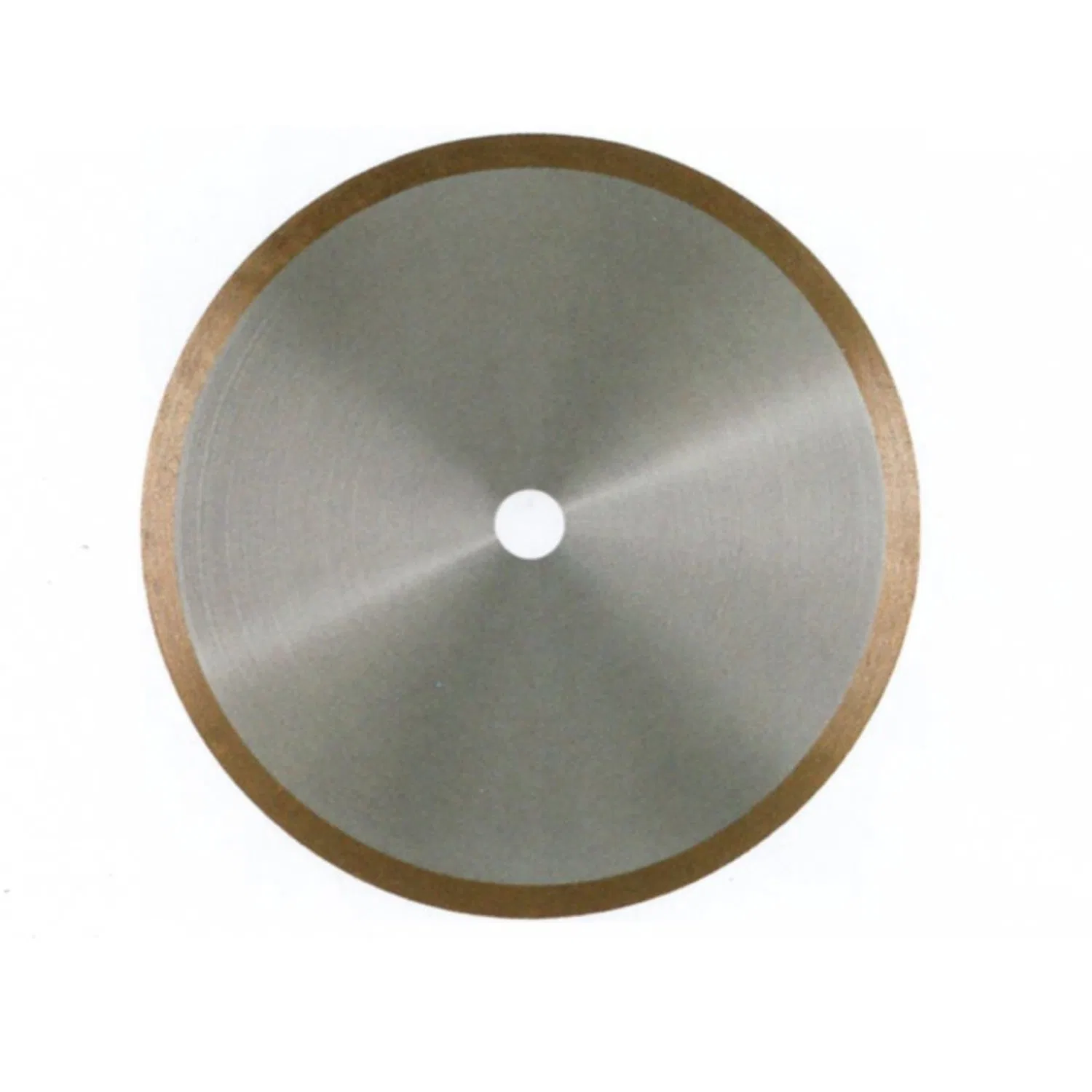

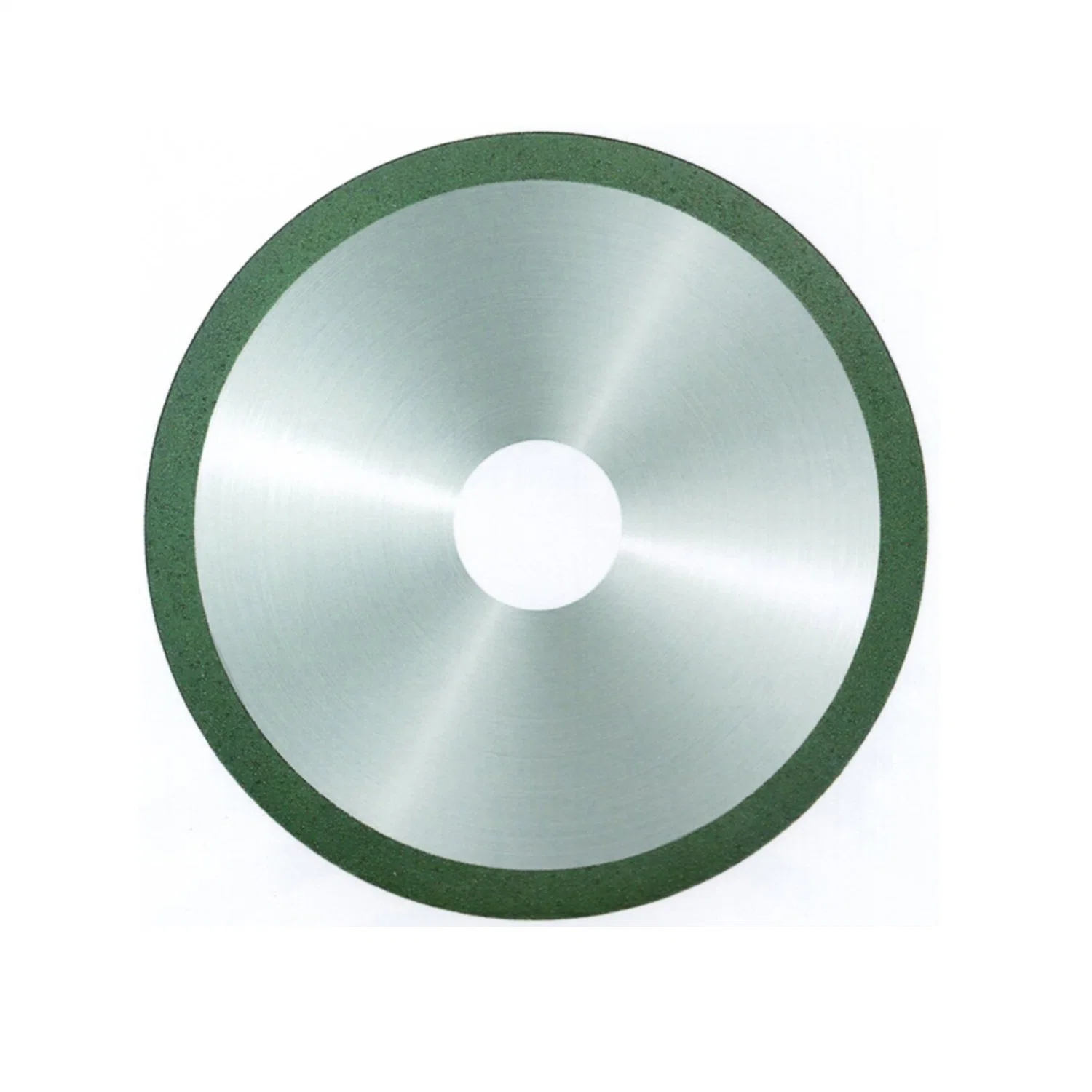

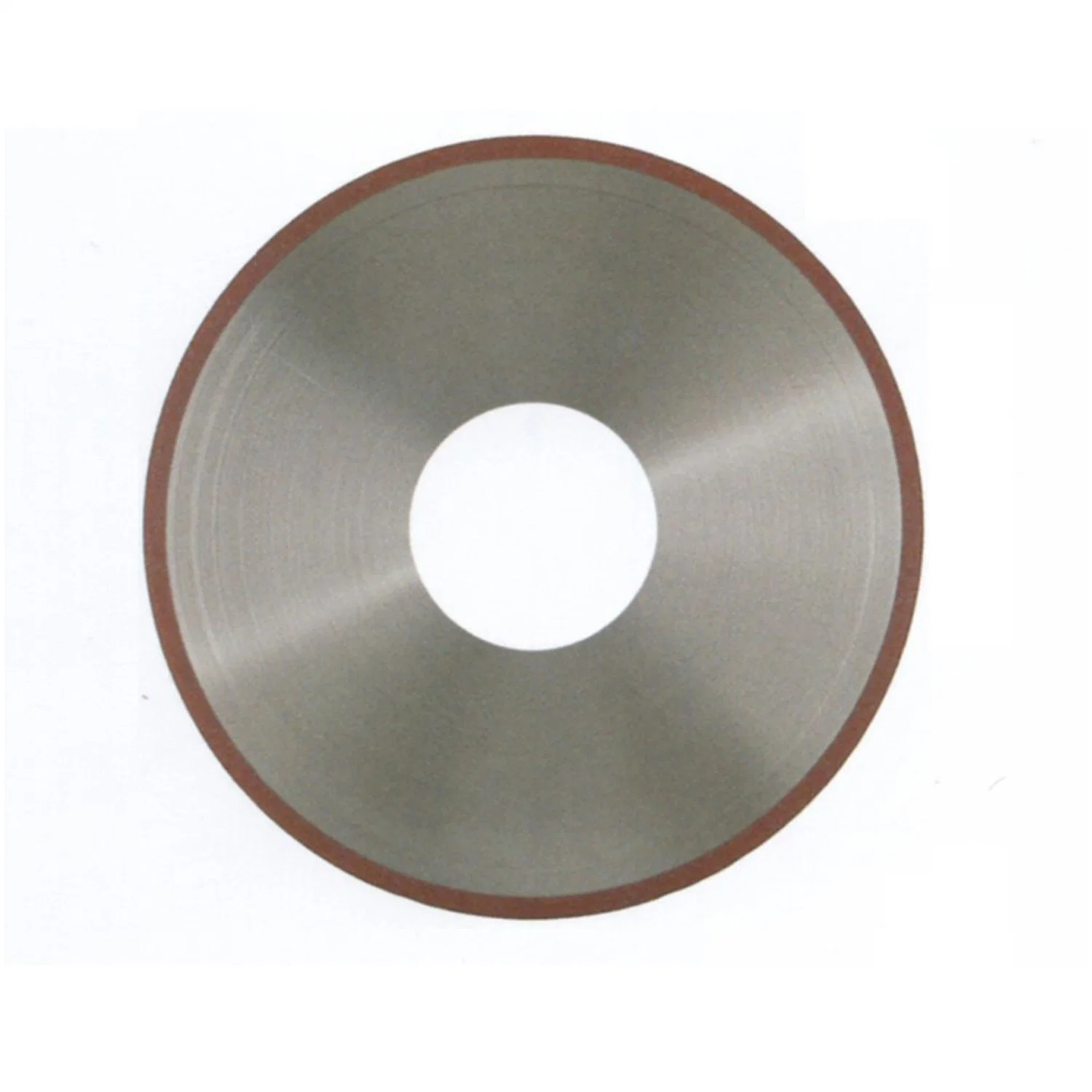

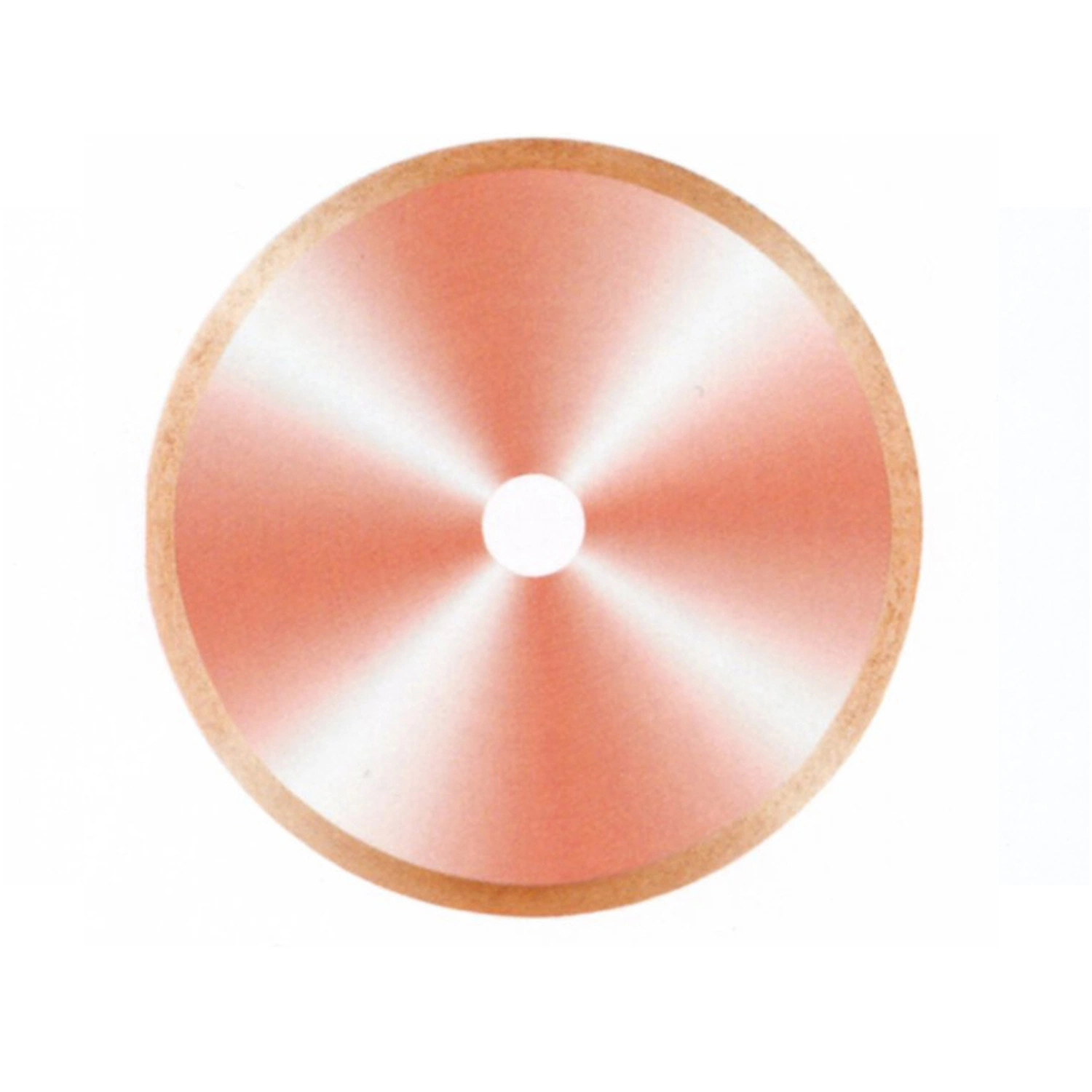

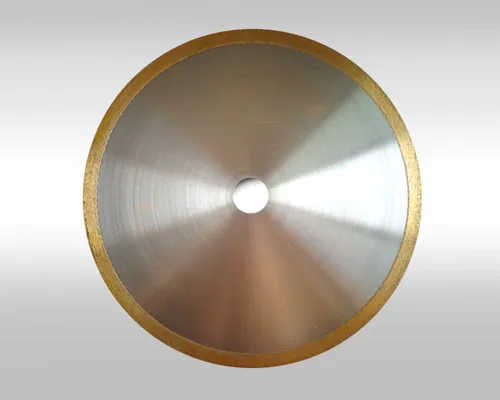

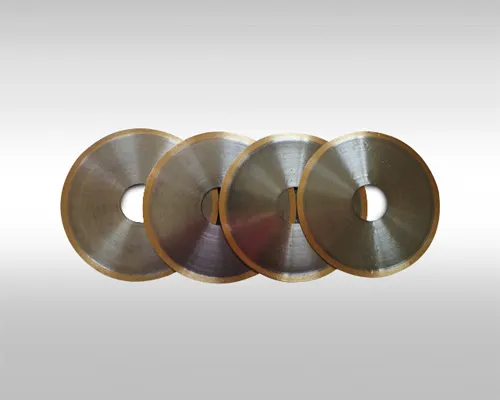

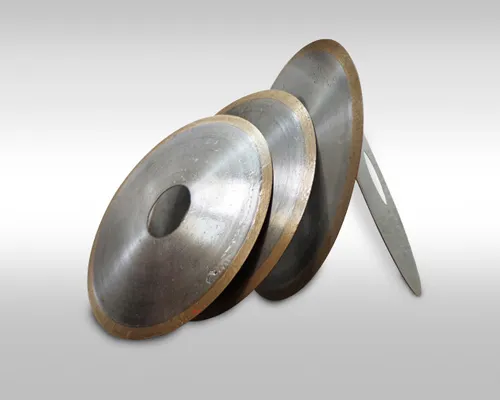

The basic structure of the ultra-thin diamond cutting disc is that the middle is made of metal, and the outer ring is a diamond working layer. Due to the use of high-rigidity metal materials to integrate the steel core and the metal bond of the outer ring, high rigidity is obtained, and high load and deep cutting can be realized.
By choosing different types of bonding agents, it can be suitable for cutting and grooving of various materials. Prevent the diamond from overheating during processing and ensure the effective life of the diamond. With tooth guard, it prevents the saw blade from flying when it is used for grinding. In addition, the tooth guard can also prevent edge chipping during cutting, ensuring that the cutting is uniform and there is no bursting phenomenon.

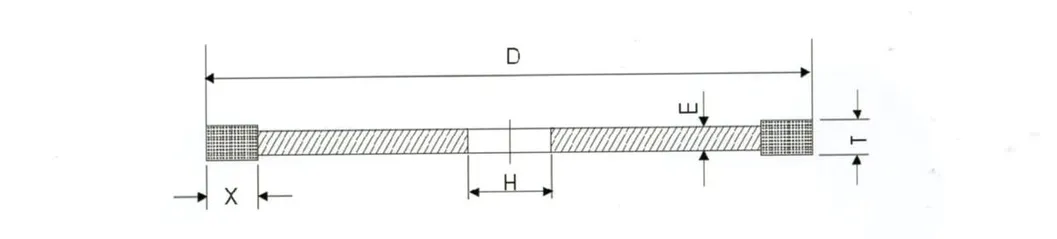

| Diameter | 50-100 | 101.6-127 | 130-160 | 175-203 | 250-400 | Thick Tolerance |
|---|---|---|---|---|---|---|
| 0.2 | √ | - | - | - | - | 1A1 ±0.005 |
| 0.3 | √ | √ | √ | - | - | - |
| 0.4 | √ | √ | √ | - | - | - |
| 0.5 | √ | √ | √ | - | - | - |
| 0.6 | √ | √ | √ | √ | - | - |
| 0.7 | √ | √ | √ | √ | - | - |
| 0.8 | √ | √ | √ | √ | - | 1A1R ±0.010 |
| 0.9 | √ | √ | √ | √ | - | - |
| 1.0 | √ | √ | √ | √ | √ | - |
| 1.5 | √ | √ | √ | √ | √ | - |
| 2.0 | √ | √ | √ | √ | √ | - |
| Hole | 12.7 19.05 20 22.225 25.4 31.75 32 40 50.8 52 60 69.875 88.9 127 191.23 | |||||
Diamond Cutting Disc for Quartz & Glass Tube: Specialized for high borosilicate and quartz tubes. Offers sharp cutting, smooth sections, and long life. Ideal for U-tubes and electronic cigarettes.
Diamond Cutting Disc for Quartz Crucible: Designed for quartz rods, sheets, boats, and furnace core rods with high precision grooving capabilities.
Diamond Cutting Disc for Optical Glass: High sharpness and small slits for camera, microscope, and telescope lenses.
Diamond Cutting Disc for Carbide: Perfect for Cobalt-Tungsten alloy (YG8) rods and blocks with no breakage on the cutting surface.
Magnetic Materials Series: Efficiently handles brittle materials like NdFeB, silicon steel, ferrite, and nanocrystalline cores.
