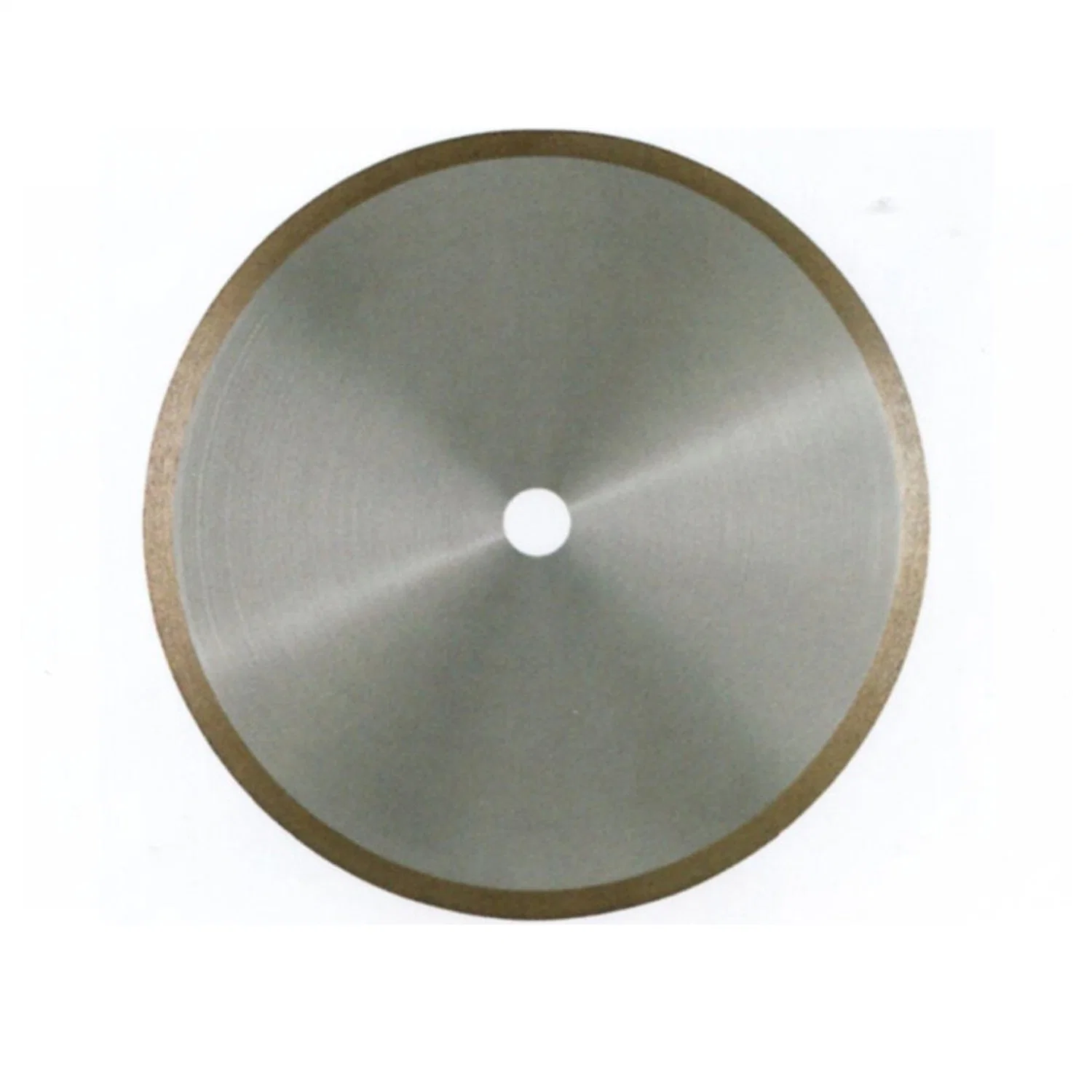

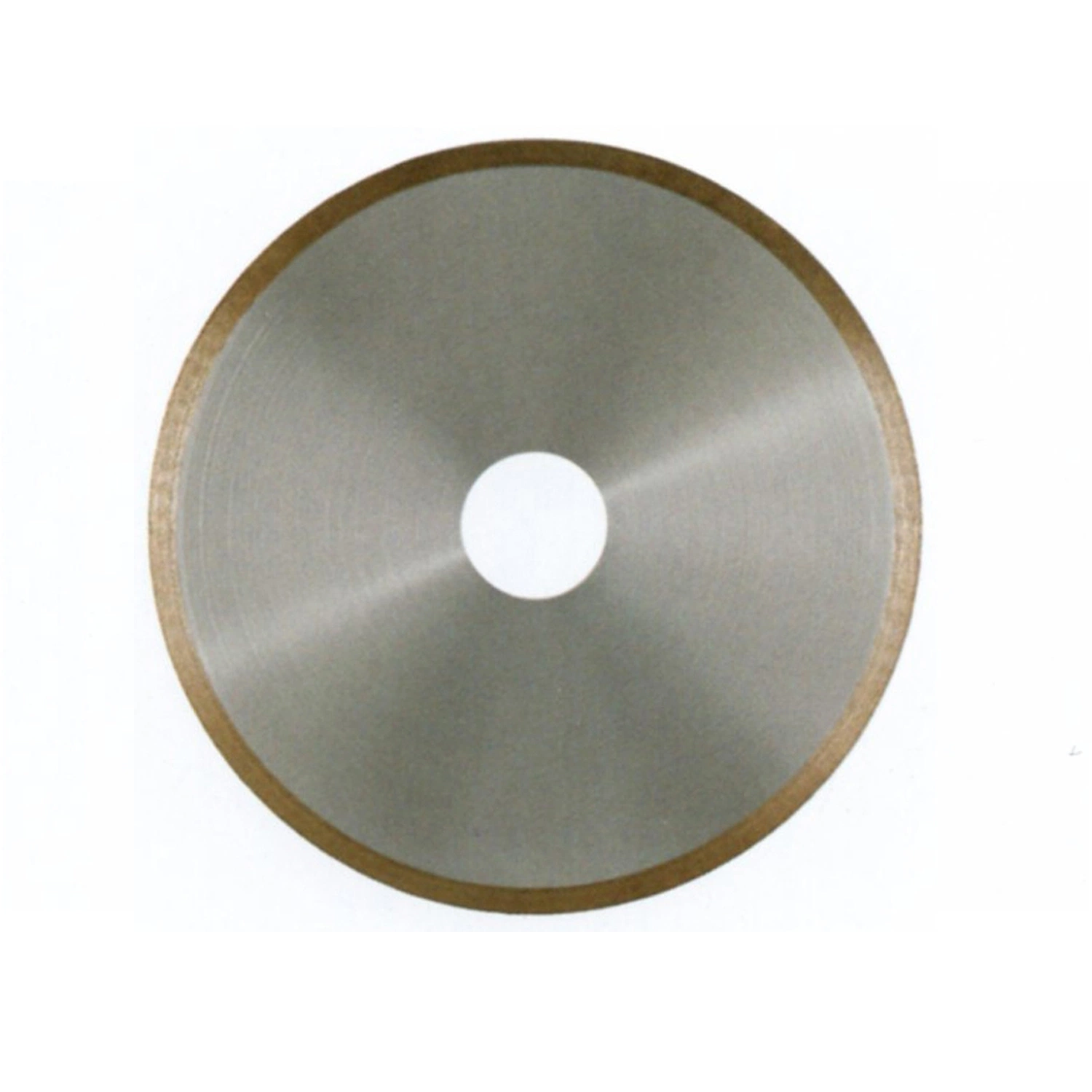

The basic structure of the ultra-thin diamond cutting disc is that the middle is made of metal, and the outer ring is a diamond working layer. Due to the use of high-rigidity metal materials to integrate the steel core and the metal bond of the outer ring, high rigidity is obtained, and high load and deep cutting can be realized. By choosing different types of bonding agents, it can be suitable for cutting and grooving of various materials. Prevent the diamond from overheating during processing and ensure the effective life of the diamond. With tooth guard, it prevents the saw blade from flying when it is used for grinding. In addition, the tooth guard can also prevent edge chipping during cutting, ensuring that the cutting is uniform and there is no bursting phenomenon.

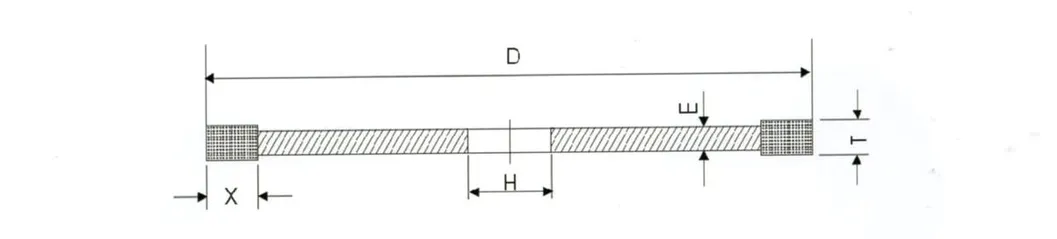

| Diameter / Thickness | 50-100 | 101.6-127 | 130-160 | 175-203 | 250-400 | Thick Tolerance |
|---|---|---|---|---|---|---|
| 0.2 | √ | - | - | - | - | 1A1 ±0.005 |
| 0.3 | √ | √ | √ | - | - | - |
| 0.4 | √ | √ | √ | - | - | - |
| 0.5 | √ | √ | √ | - | - | - |
| 0.6 | √ | √ | √ | √ | - | - |
| 0.7 | √ | √ | √ | √ | - | - |
| 0.8 | √ | √ | √ | √ | - | 1A1R ±0.010 |
| 1.0 | √ | √ | √ | √ | √ | - |
| 2.0 | √ | √ | √ | √ | √ | - |
| Hole Size: 12.7, 19.05, 20, 22.225, 25.4, 31.75, 32, 40, 50.8, 52, 60, 69.875, 88.9, 127, 191.23 | ||||||
• Resin bond diamond cutting discs can self-sharpen and cut sharply. The work quality can be improved due to the elastic resin bond.
• The thickness of work layer is as same as steel plate. They are mainly used for precise grooving and cutting.
• The thickness of work layer is higher than the steel plate. They have advantages for removing chips and cooling. They are mainly used for deep cutting and grooving of components.
Diamond Cutting Disc for Quartz and High Borosilicate Glass Tube Process: Specializes in precision cutting of quartz and borosilicate glass tubes. Features sharp cutting, smooth section, and long service life.
Diamond Cutting Disc for Quartz Crucible: Used for quartz glass rods, sheets, crucibles, and furnace core rods with smooth cutting surface.
Diamond Cutting Disc for Optical Glass: Ideal for camera lenses, microscopes, and telescope lenses. High sharpness and small slits.

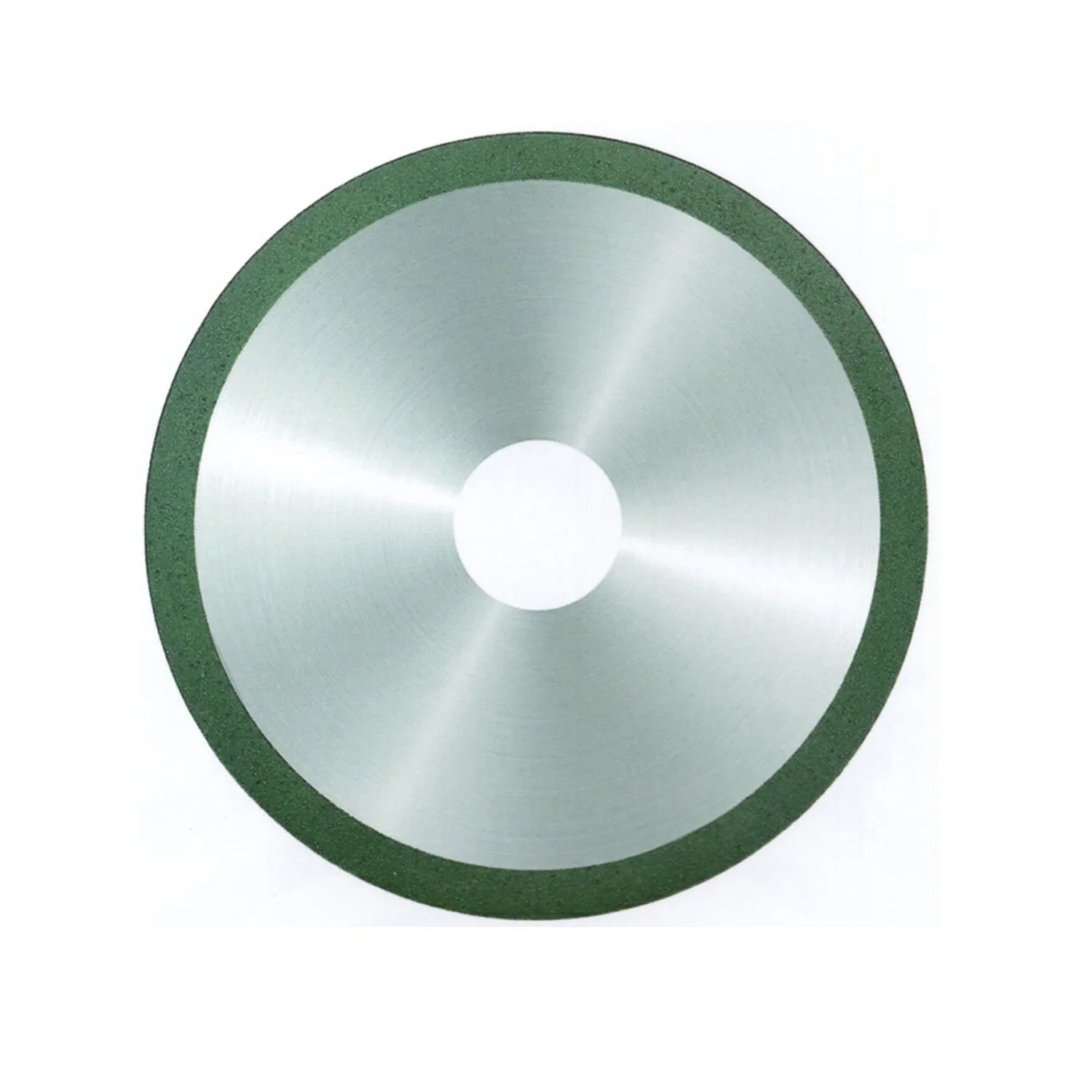

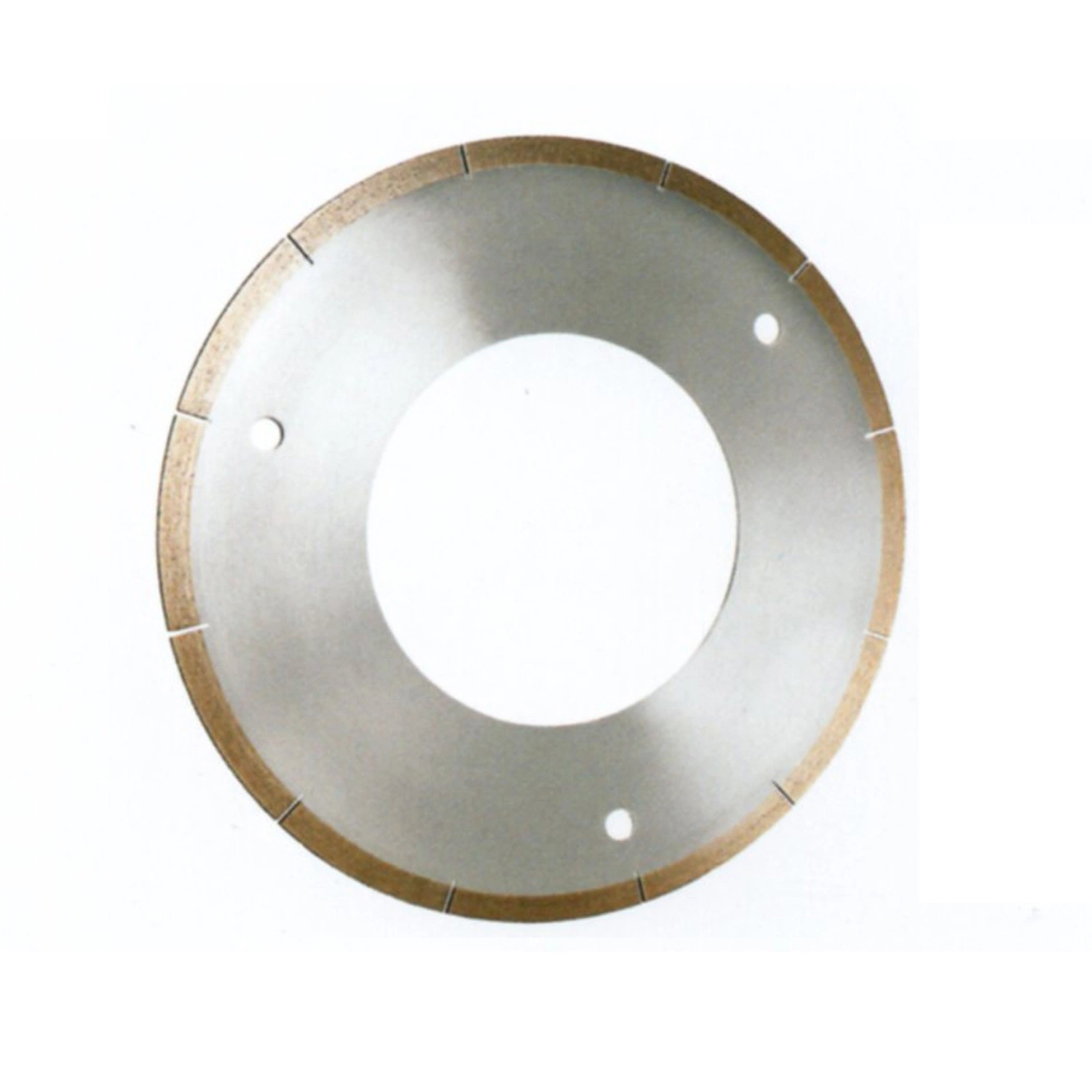

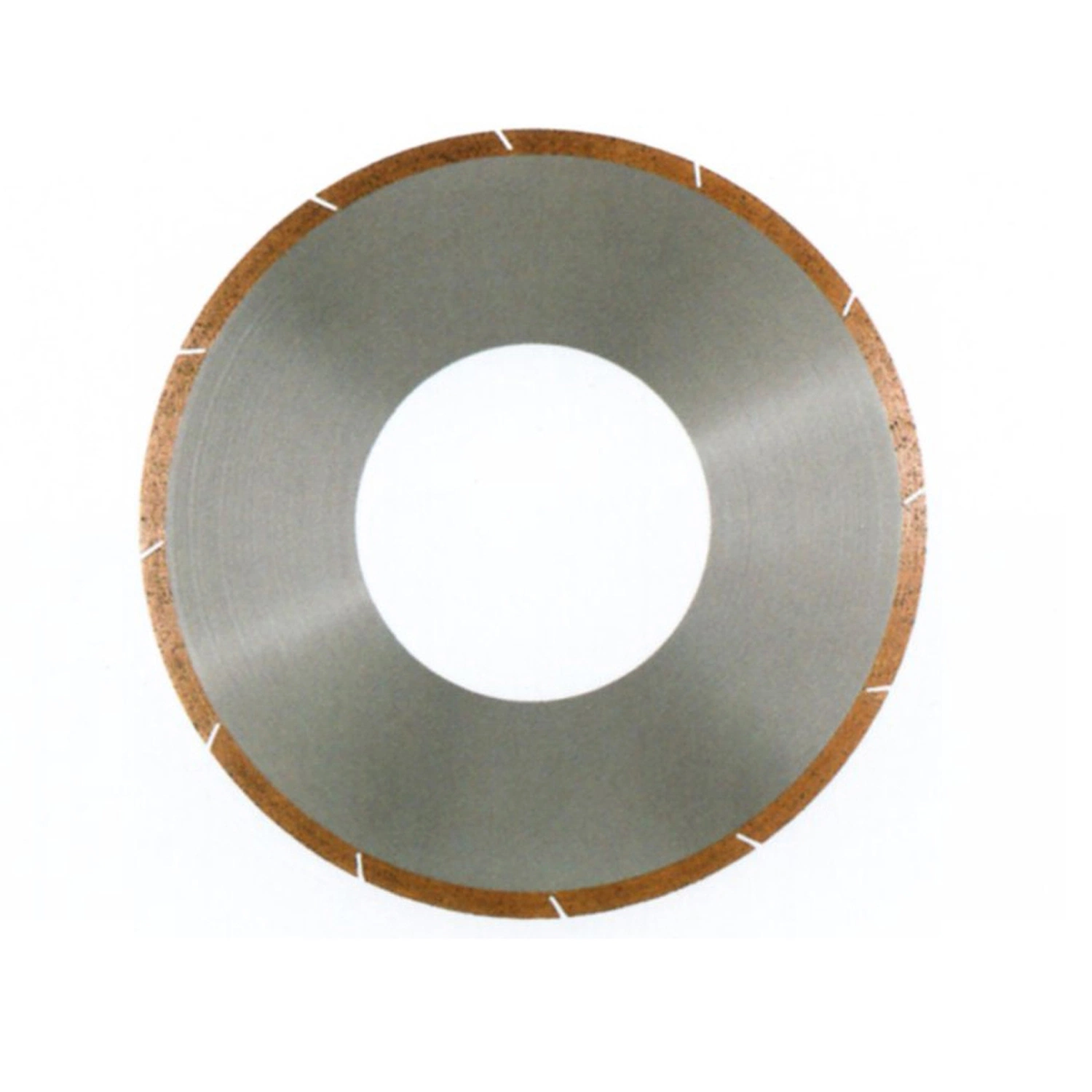

Diamond Cutting Disc for Carbide Processing: Designed for cobalt-tungsten alloy (YG8) providing perfect slotting for rods and blocks.
Diamond Cutting Disc for Magnetic Materials: Efficiently cuts NdFeB, silicon steel, ferrite, and other brittle magnetic materials.
Glass material: Various glass tube / Glass spout / Tea strainer/ High borosilicate glass / Capillary glass tube / Optical glass / Quartz glass / Crystal glass
Ceramic material: Alumina / Zirconia / Silicon Carbide / Boron Carbide / Boron Nitride / Black Ceramic
Abrasive & Magnetic: Refractory / Superfinishing stone / Ferrite / NdFeB
Alloy & Brittle metal: High speed steel / Alloy steel / Carbide (YG Series)
