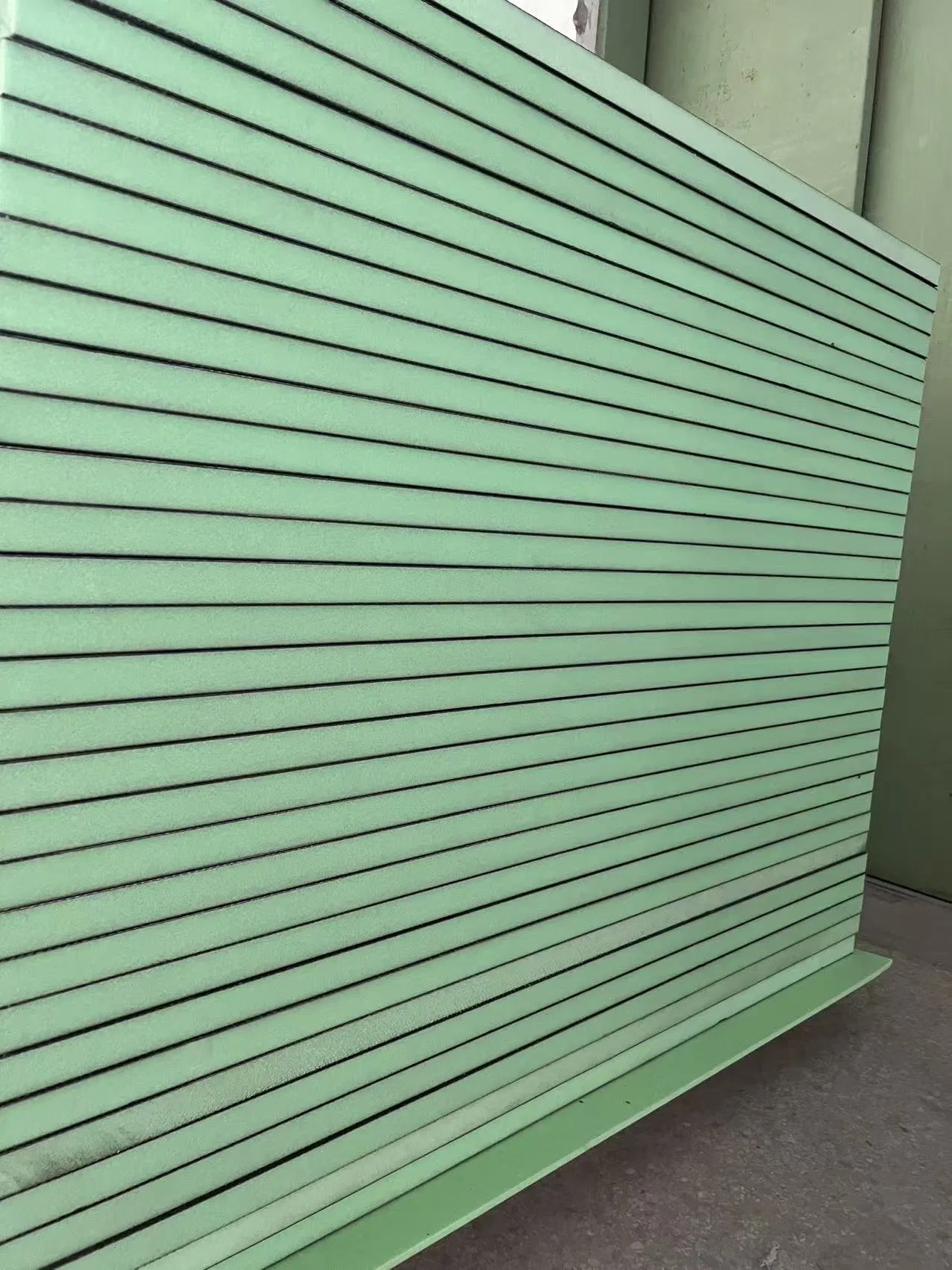

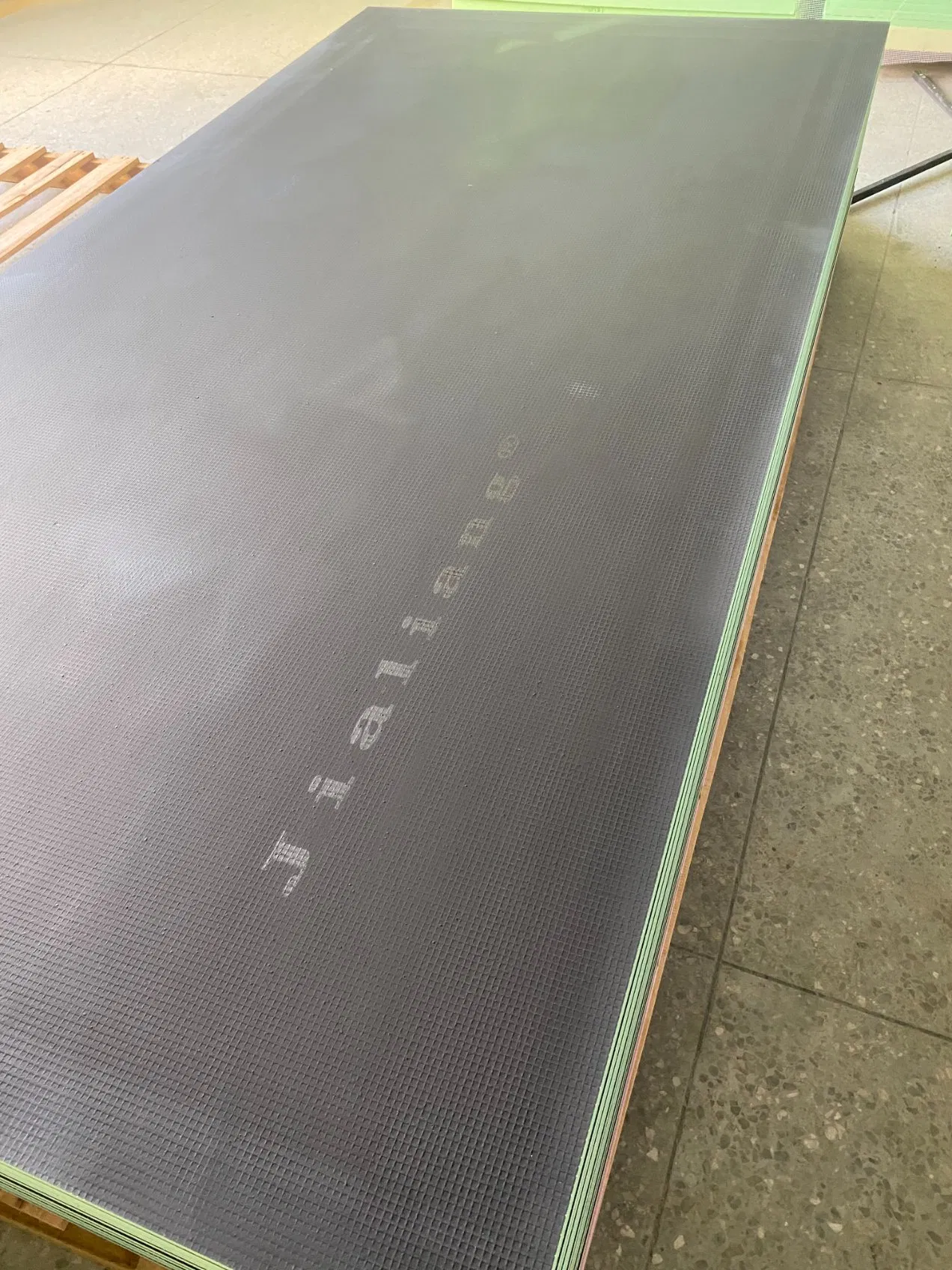

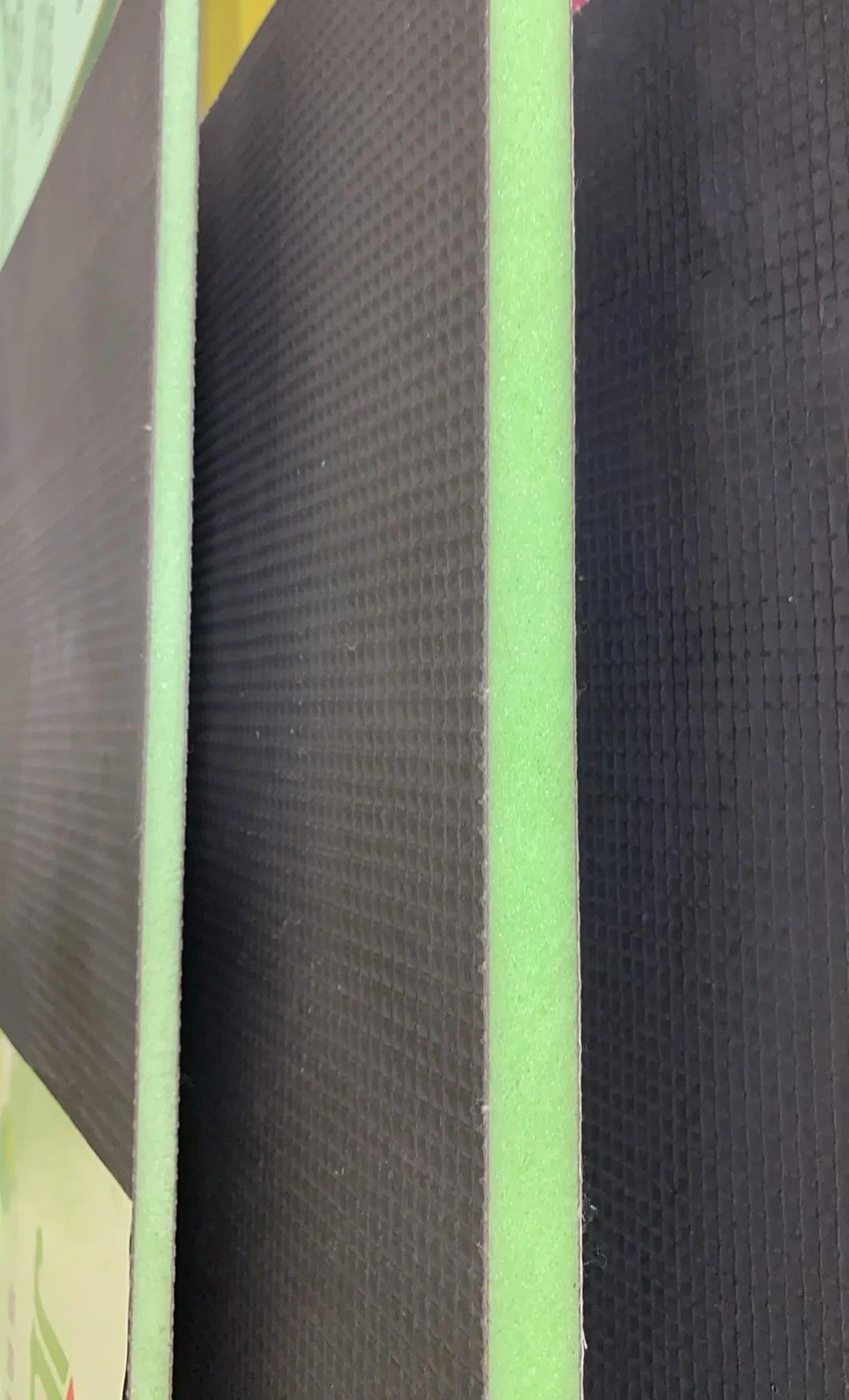

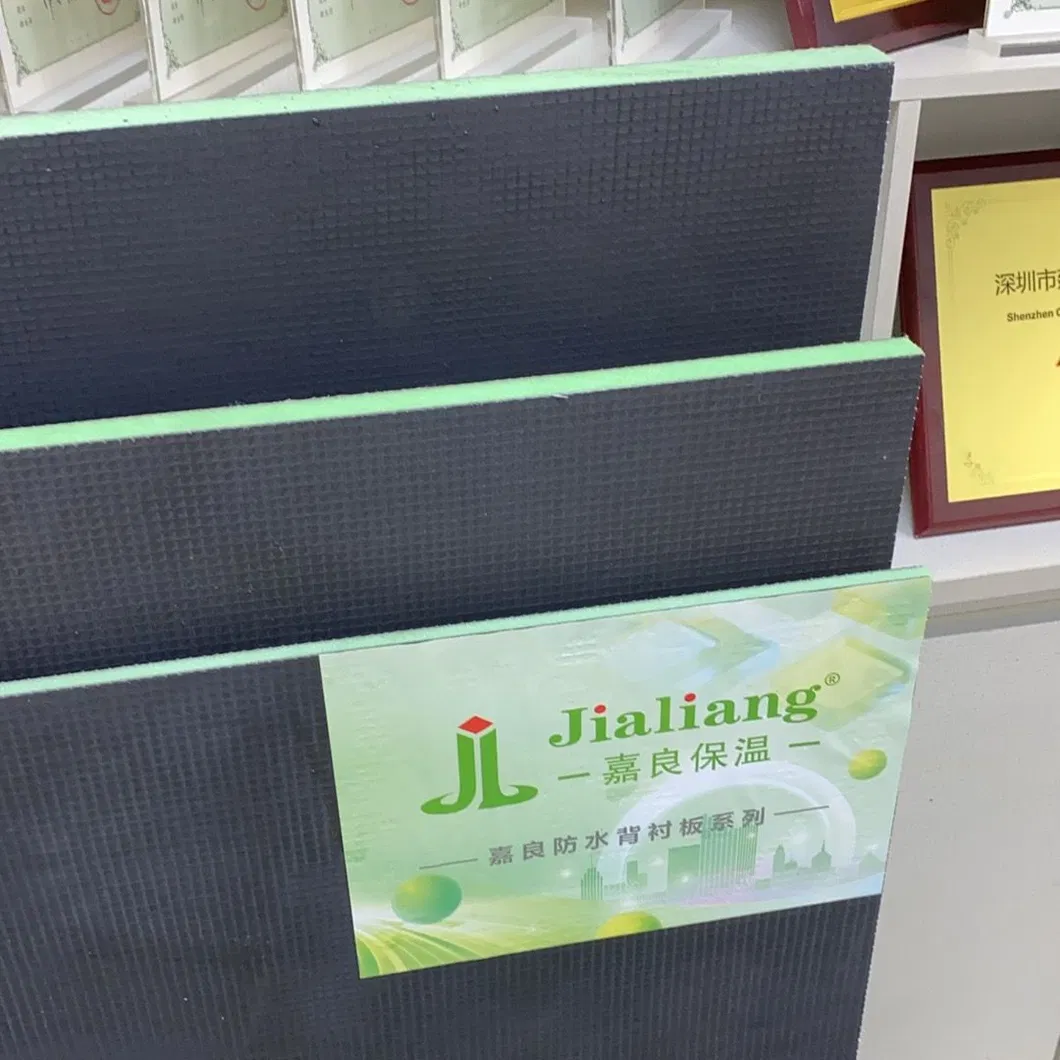

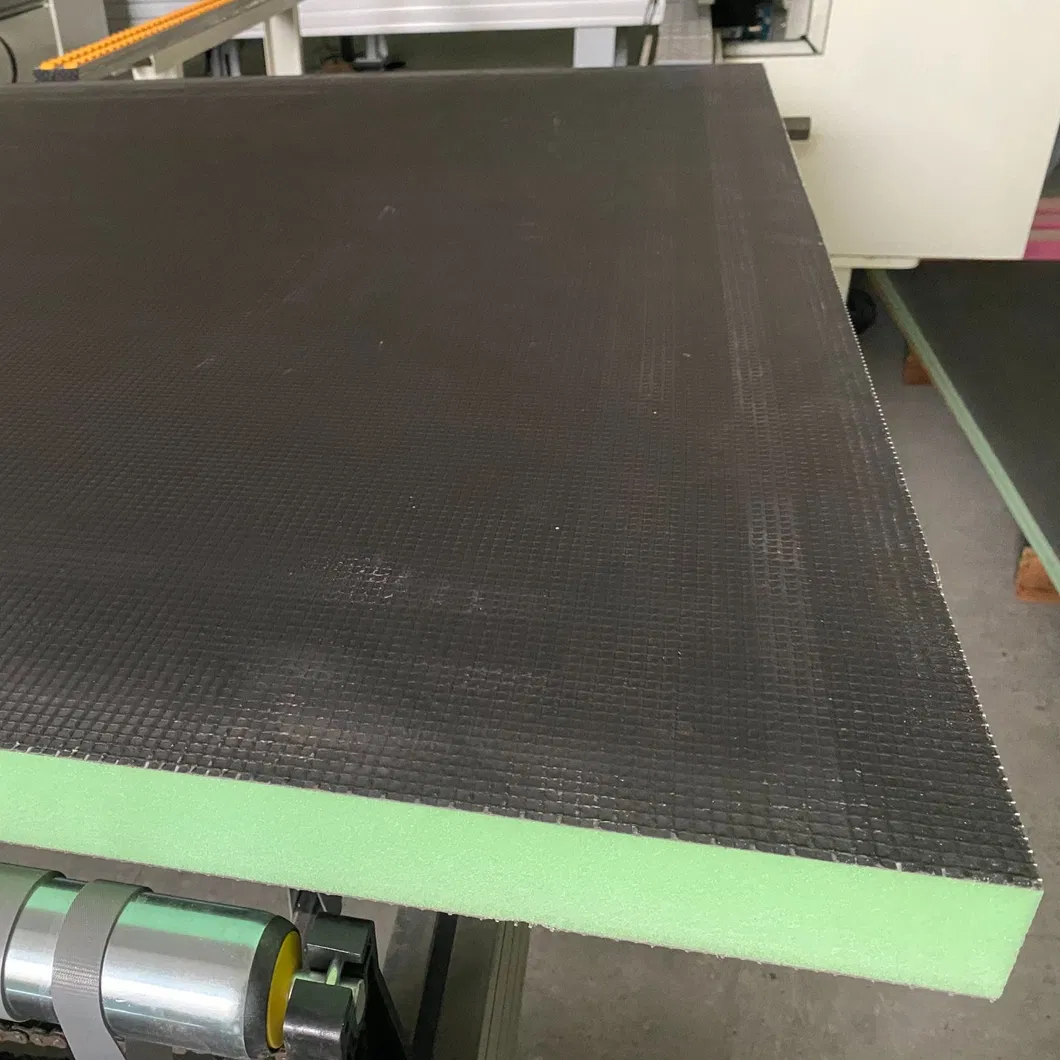

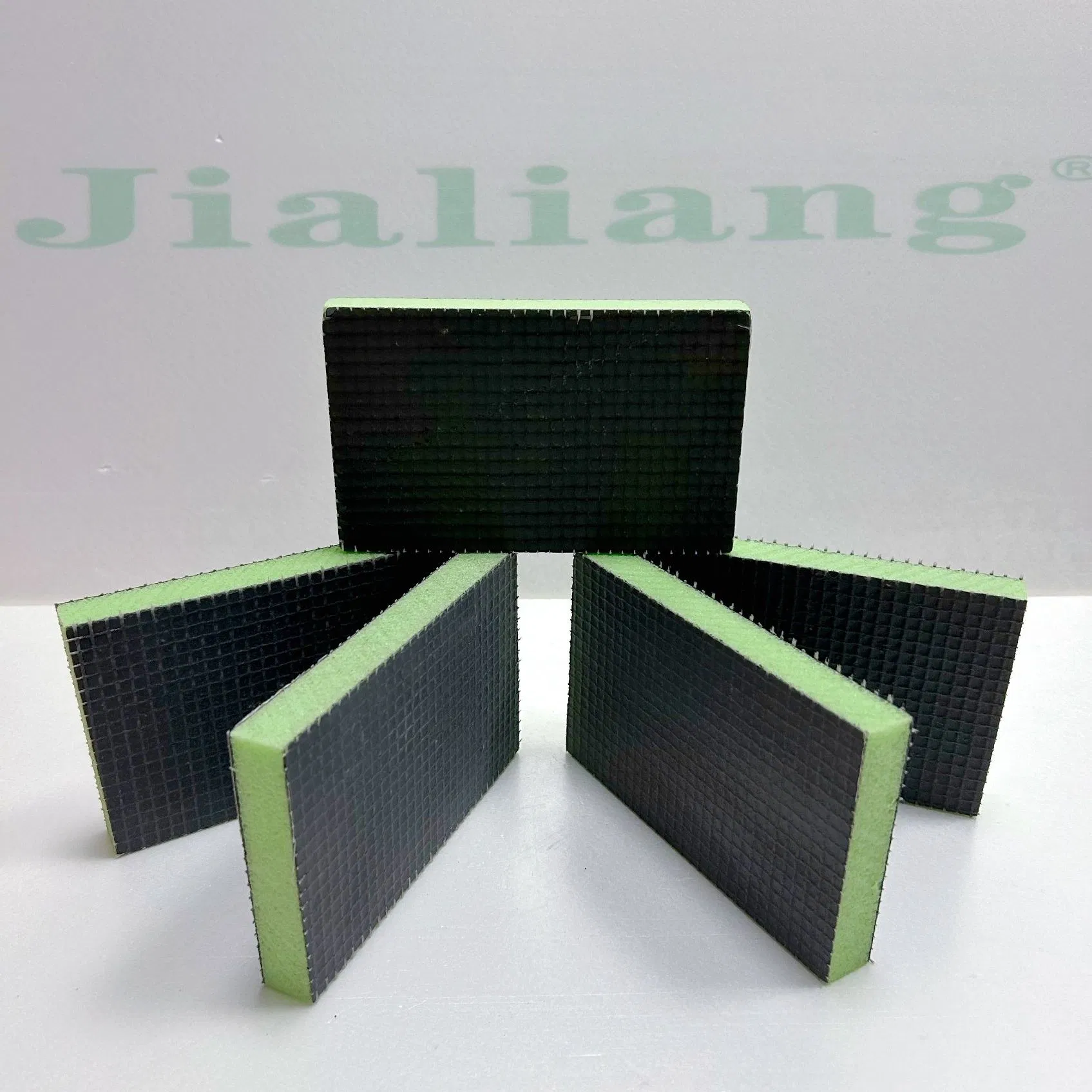

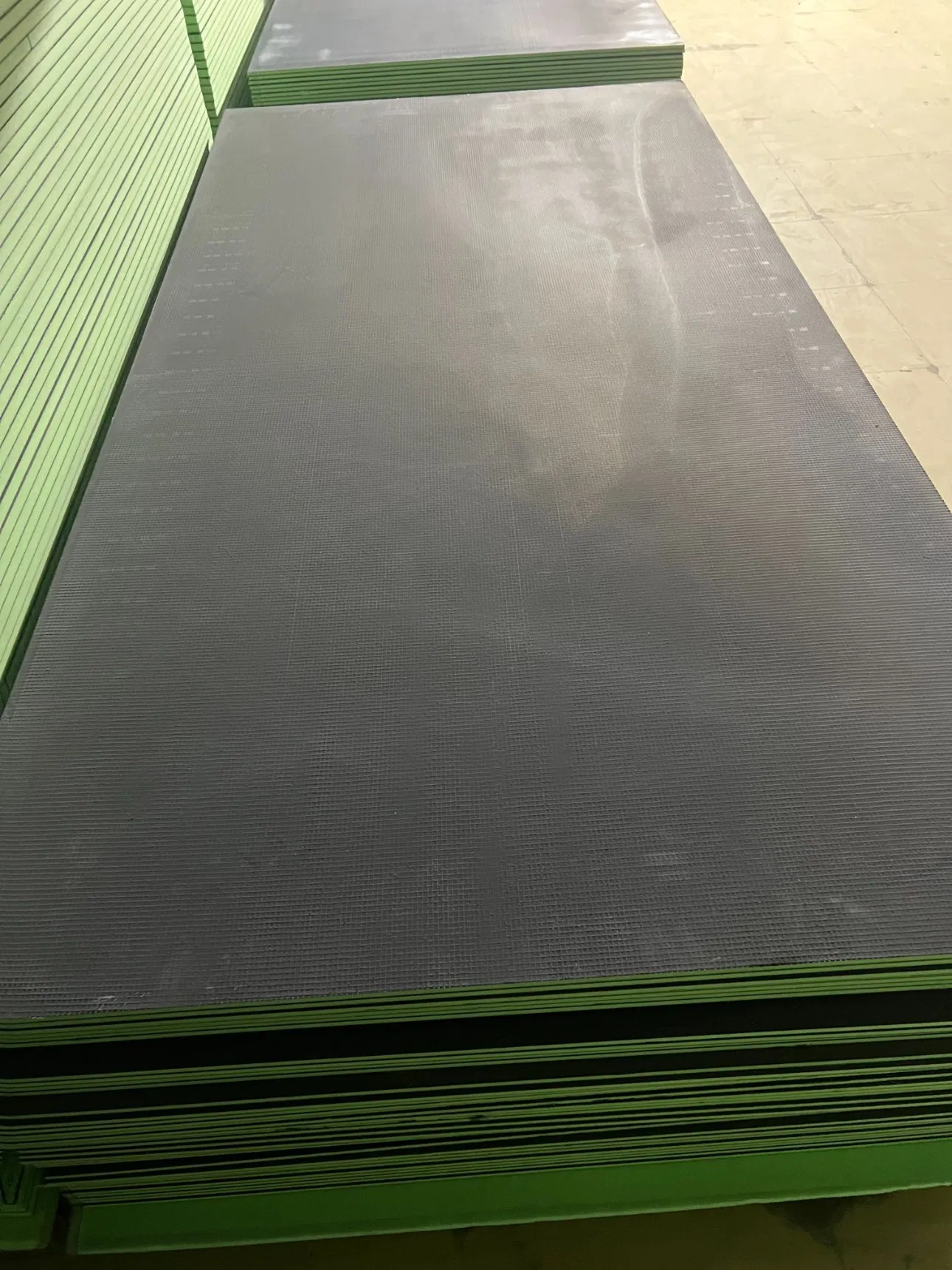

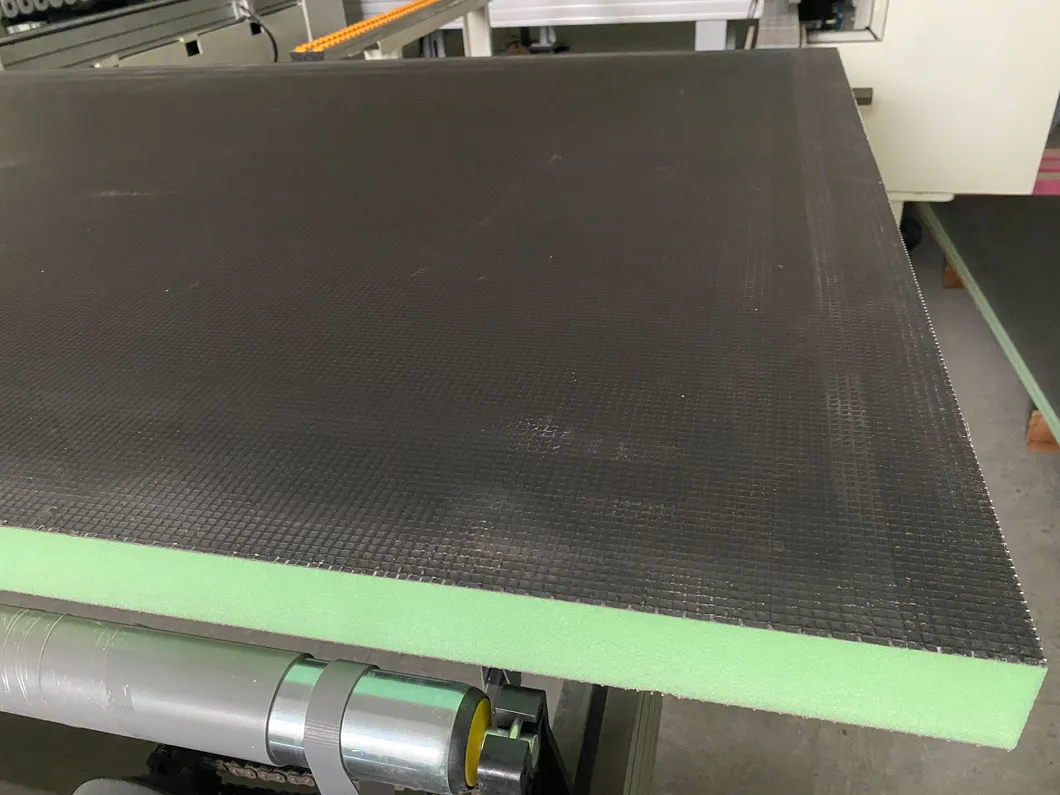

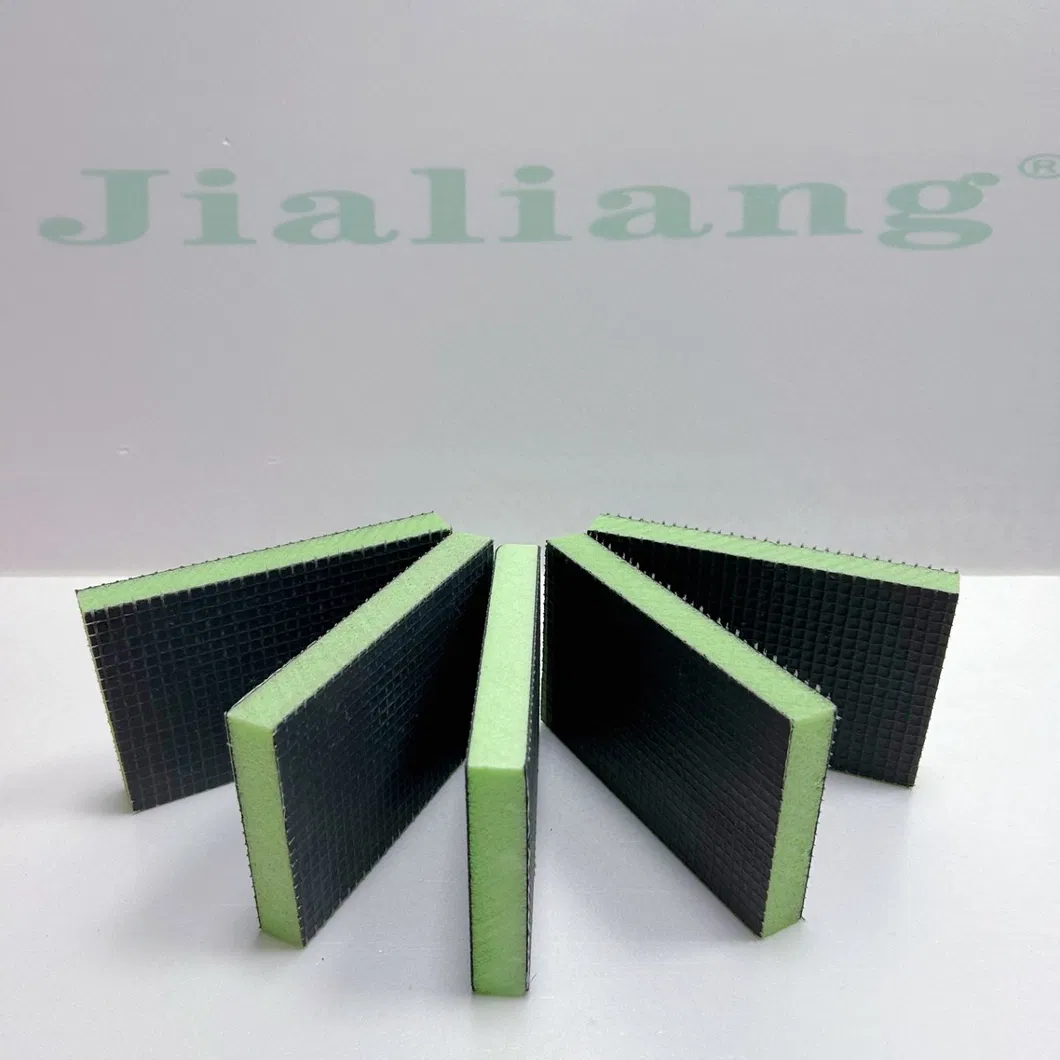

XPS ceramic tile backing board is made of extruded polystyrene foam, which is a closed cell foam with excellent waterproof and thermal insulation properties. These ceramic tile backboards are coated with glass fiber mesh embedded in polymer mortar on each side, which enhances the strength and tensile strength. The core material determines the service life and thermal insulation and waterproof performance of the backing board. Suitable for wall, external bathroom, and kitchen applications.



| High-intensity Cold Chain XPS Foam Board Indicators | |||
|---|---|---|---|
| Size (Length) | 600mm - 2400mm | Flame Retardant | B1 / B2 / B3 |
| Size (Width) | 600mm / 1200mm | Shape | Cuboid |
| Size (Thickness) | 20mm - 100mm | Material | Polystyrene & Flame retardants |
| Thermal Conductivity | ≤0.030 - 0.034 W/M*K | Compressive Strength | 150kpa - 1200kpa |
| Density | 30kg/m³ - 50kg/m³ | Water Absorption | ≤1.0% (96h) |

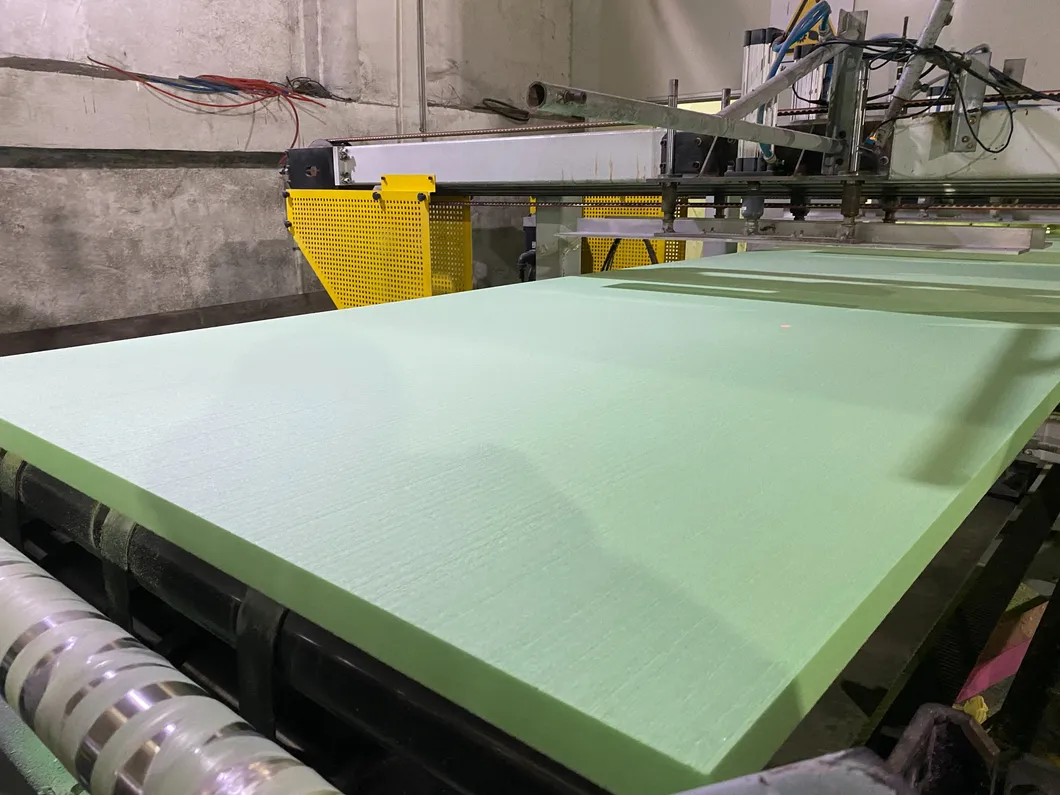

Operating since 2007, we specialize in scientific research, production, and sales of high-tech insulation materials. Our facility features advanced production technology and intelligent equipment.
