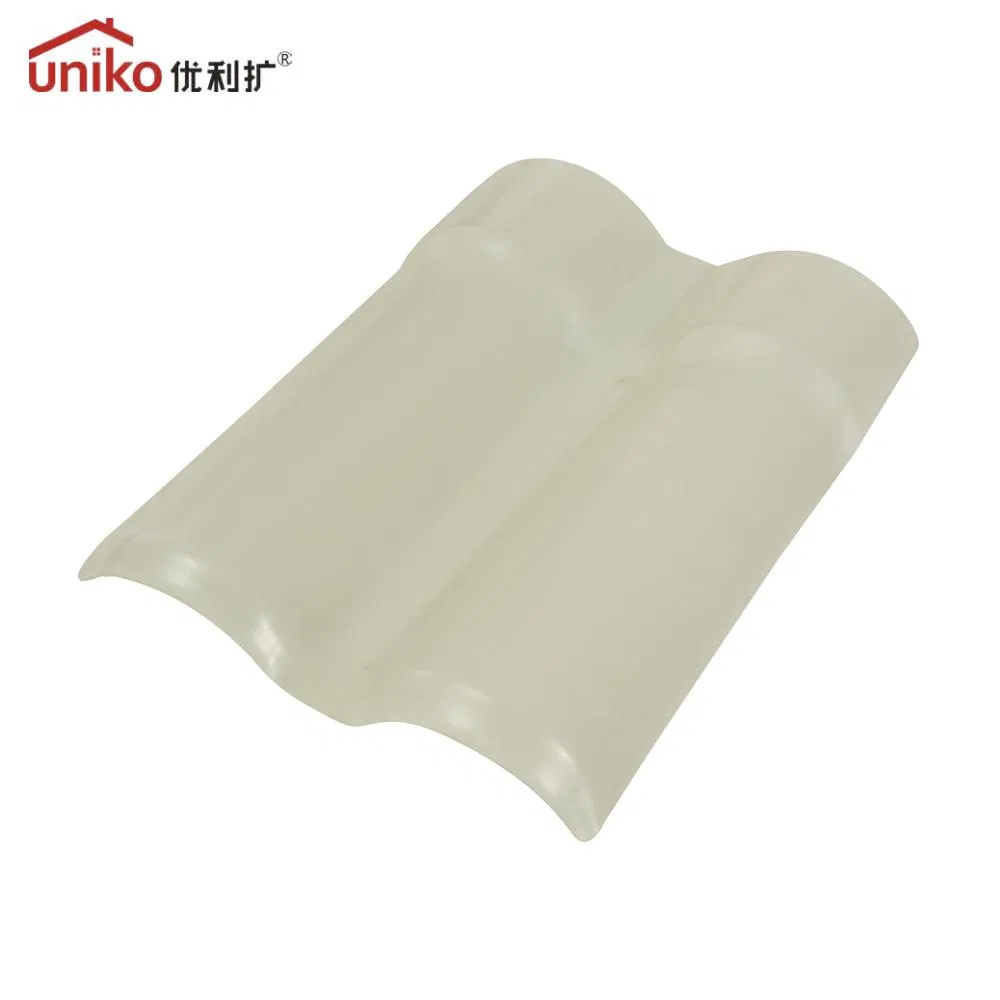

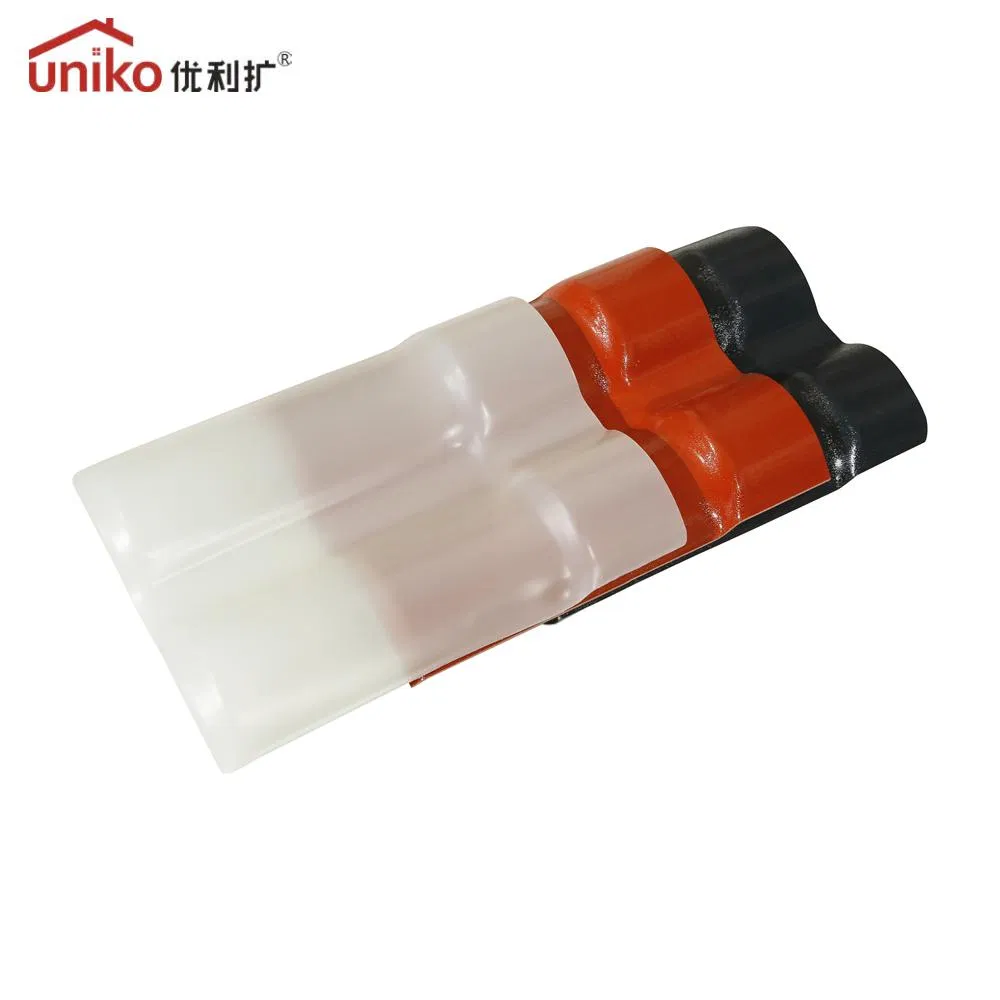

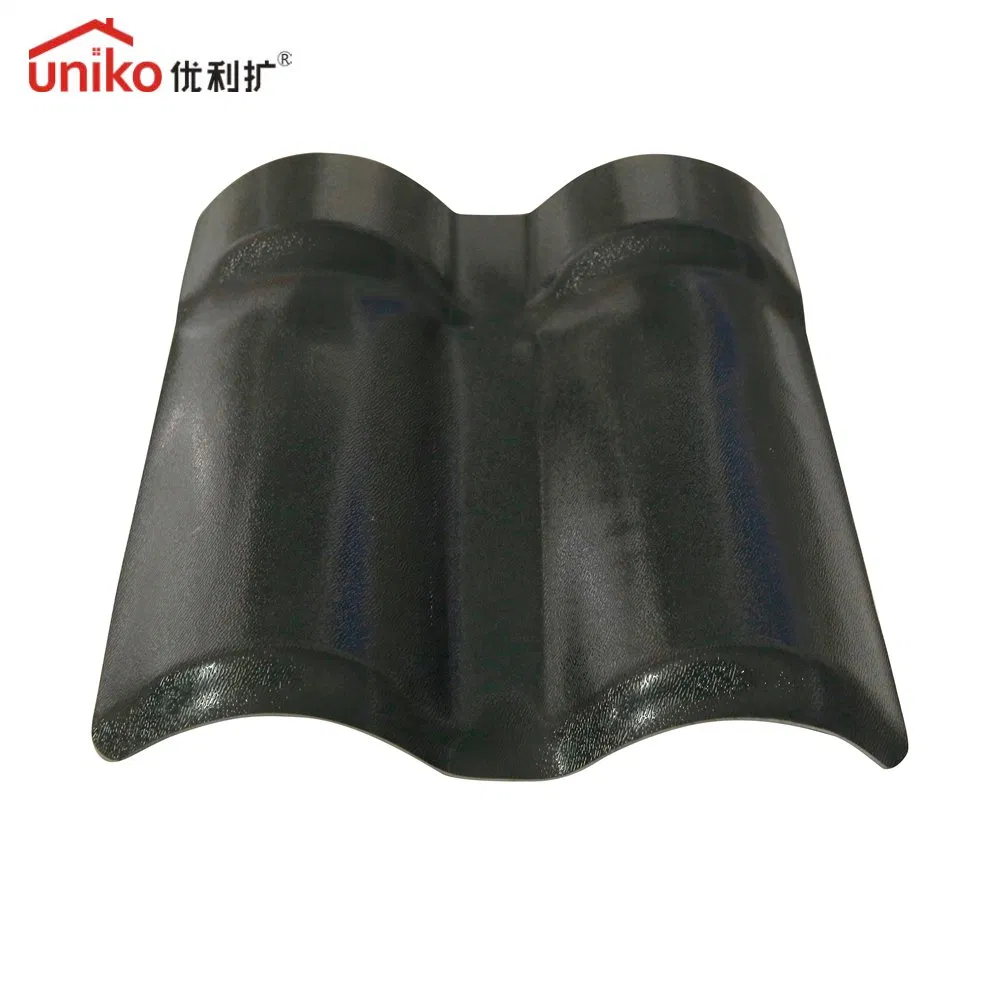

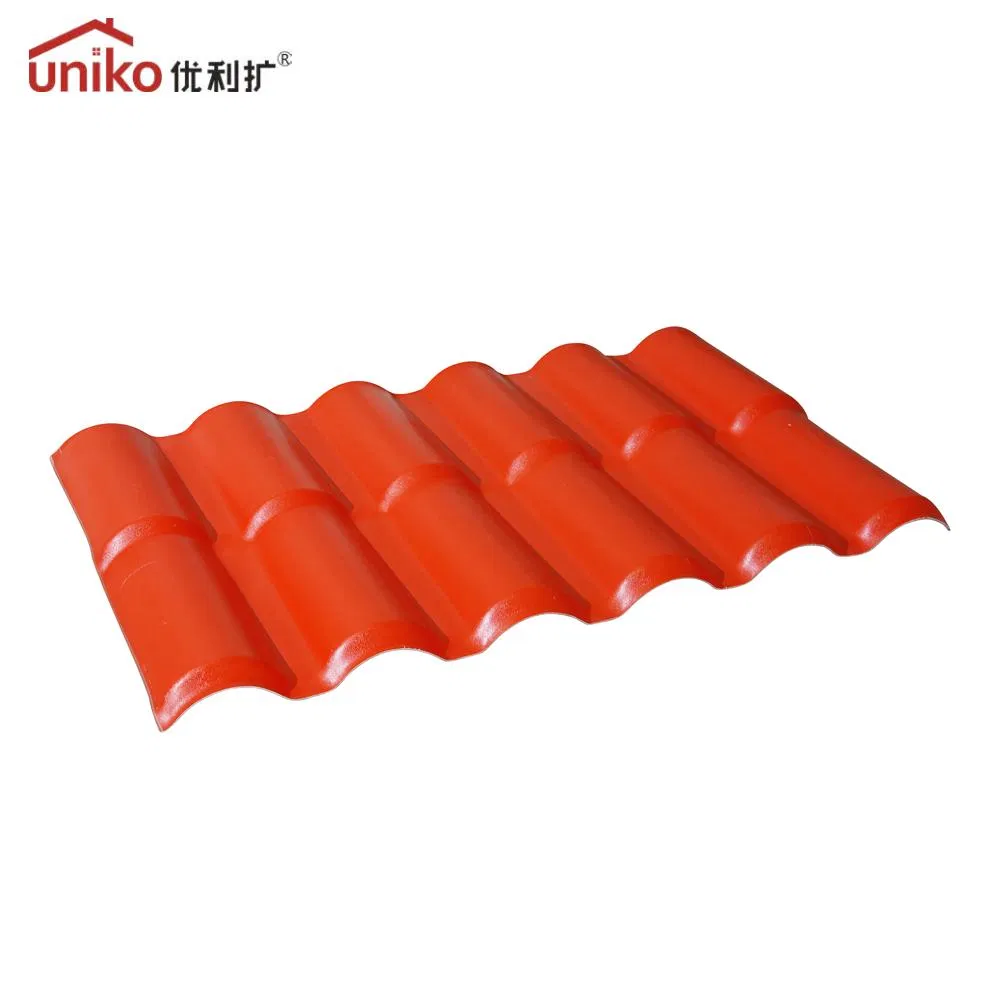

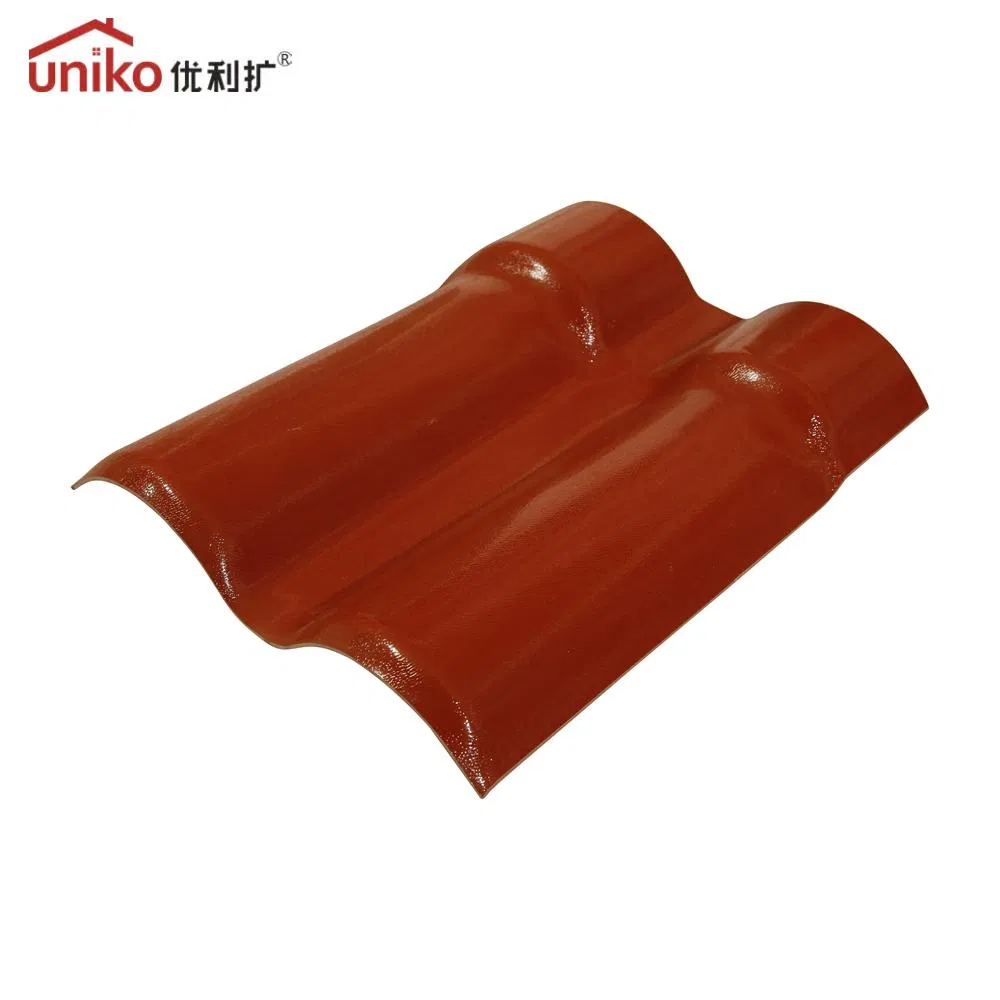

Foshan Uniko Impat Resistance ASA Roofing Sheet PVC Roof Tile for Commercial Space Decoration

Customization: Available
Type: Profiled
Material: PVC

Product Description

Basic Information

Model NO.
Roma resin tile
Forming Way
Extrusion
Application
Decoration, Structural & Functional Components
Material
UV/Weather Resistance ASA-PVC
Markets
Building & Construction
Usage
Exterior Roofing
Thickness
2.3 / 2.5 / 3.0mm
Width
1050mm

Introduction

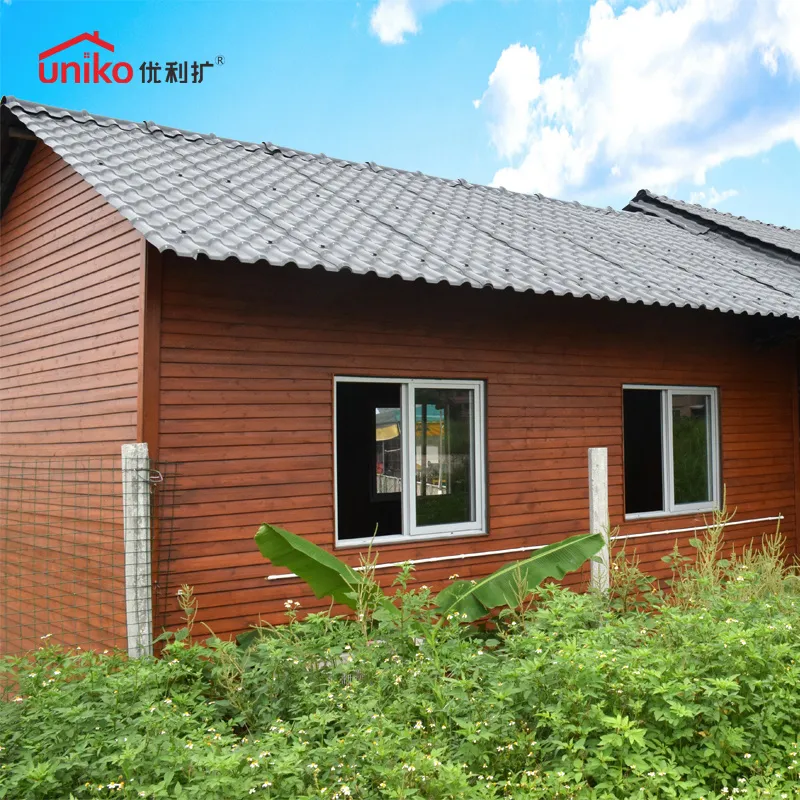

Roma Roof Tile

Roman roof tiles offer a classic choice of roof covering. Their traditional appearance wins them points for aesthetics, and the tiles themselves are extremely robust. Roman roof tiles are largely flat, with Double Roman tiles featuring two rolls, distinguishing them from Single Roman, which have just one roll. It is a modern choice combining research and style for advanced building protection.

Advanced Layer Technology

Our synthetic resin tile utilizes advanced triple extrusion technology for superior durability:

01. Surface Layer

ASA high weather resistant engineering plastic to shielding UV radiation and maintain color stability.

02. Middle Layer

Backbone layer providing structural integrity and strength.

03. Bottom Layer

Abrasion resistance layer for long-term inner protection.

Product Features

Feature Display
Long Life Guarantee

30 years Life Guarantee, 10 Years Color guarantee. Extraordinary durability in natural environments.

Corrosion Resistance

Resists acids, alkalis, and salts. Ideal for coastal areas and acid rain regions.

Insulation

Excellent sound, heat, and electrical insulation. Safer than metal tiles in ray-prone areas.

Fire Retardant

Class B1 level tested by the National Fire Department.

Impact Resistance

High loading capacity; resistant to cracking even under extreme weight or hail impact.

Eco-Friendly

Asbestos-free and recyclable, meeting global environmental protection requirements.

Technical Parameters

Specification Details
MaterialPVC, ASA-PVC
Thickness2.3mm, 2.5mm, 3.0mm
Width1050mm
Wave Spacing188mm
Wave Height40mm
Pitch328mm
Color OptionsPurplish red, Bright red, Brick red, Blue, Gray, Green, etc.
Warranty30 Years
Specs 1
Specs 2

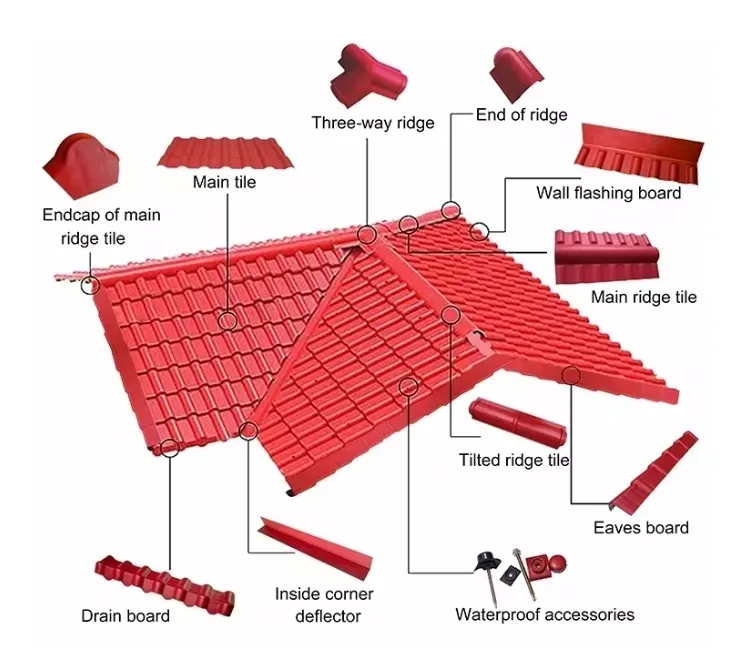

Installation Guide

Installation
  • Purlin Selection: Square tube (60x40x3mm) or section steel (100x50x3mm).
  • Spacing: The space between purlines should be 660mm, arranged bottom to top.
  • Direction: Install main tiles in the reverse direction of local wind.
  • Fixing: Use special waterproof accessories (approx 4-6 sets per square meter).

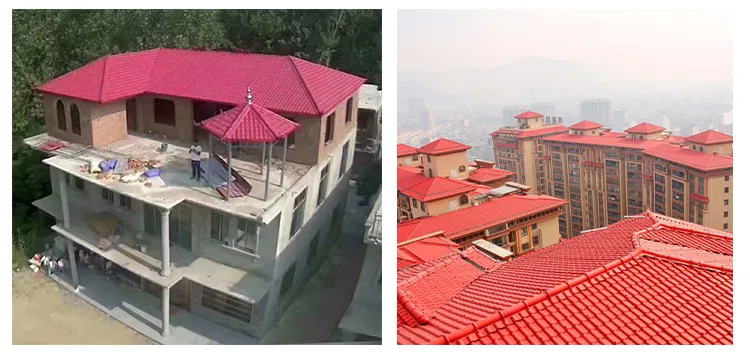

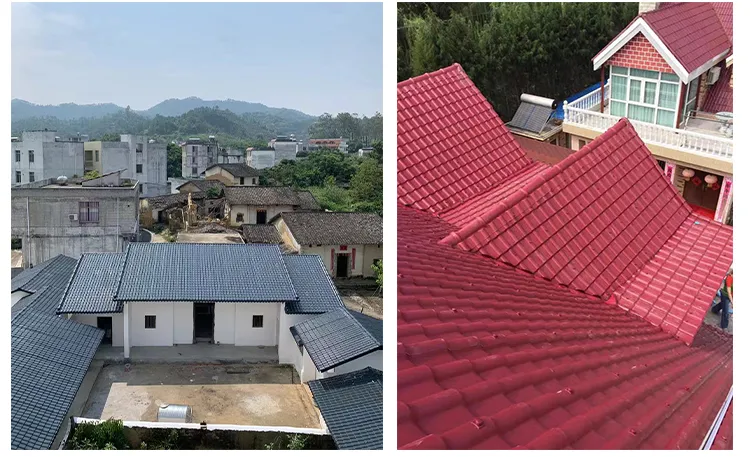

Application Scenarios

App 1
App 2

Commercial Space: Ideal for shopping malls, hotels, and restaurants due to aesthetic diversity.

Industrial Buildings: Suitable for ceramic factories, chemical plants, and warehouses needing corrosion resistance.

Residential & Public: Used for home flooring, wall decoration, and public spaces like airports or hospitals.

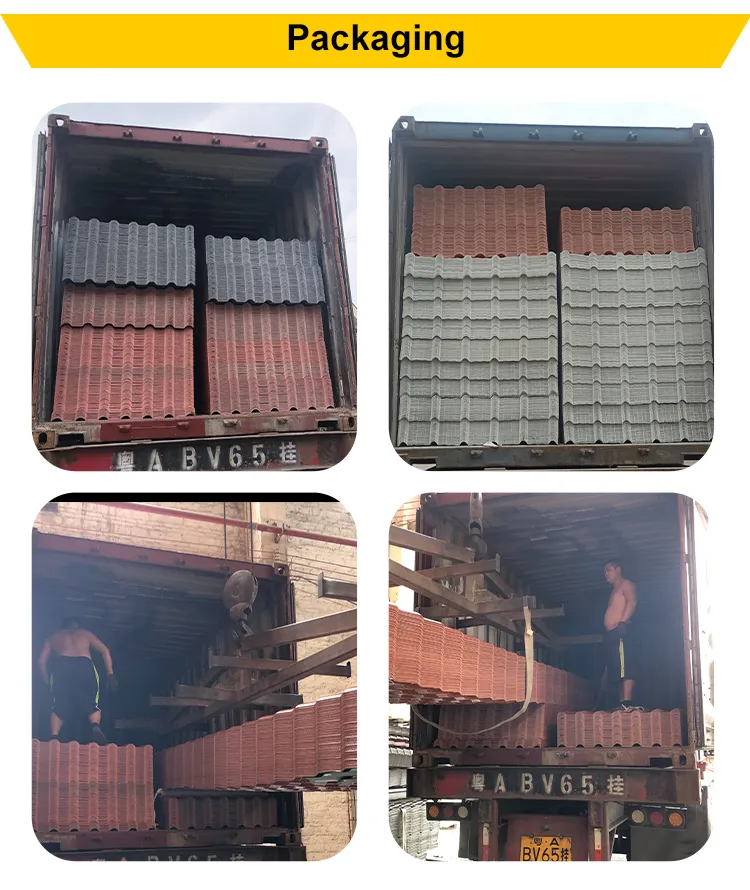

Packaging & Shipping

Professional export service with standard sea shipment packaging to ensure safe delivery of goods.

Packaging

Frequently Asked Questions

Q1: Can I request product samples?
Yes, free samples are available. Customers only need to cover the express freight costs.
Q2: What is the typical delivery time?
For mass production, it usually takes about 10 days for orders within 10,000 square meters.
Q3: What is the warranty period for the tiles?
We offer a 30-year life guarantee and a 10-year warranty on color stability for our products.
Q4: Can the length of the tiles be customized?
Yes, we customize lengths based on your needs. Max length is 5.8m for 20ft containers and 11.8m for 40ft containers.
Q5: What are the main applications of PVC roof sheets?
They are perfect for high-grade factories, steel structures, warehouses, and environments with strong corrosiveness like chemical plants.
Q6: Are the tiles fire resistant?
Yes, they are tested to Class B1 level, making them excellent flame retardant materials.
