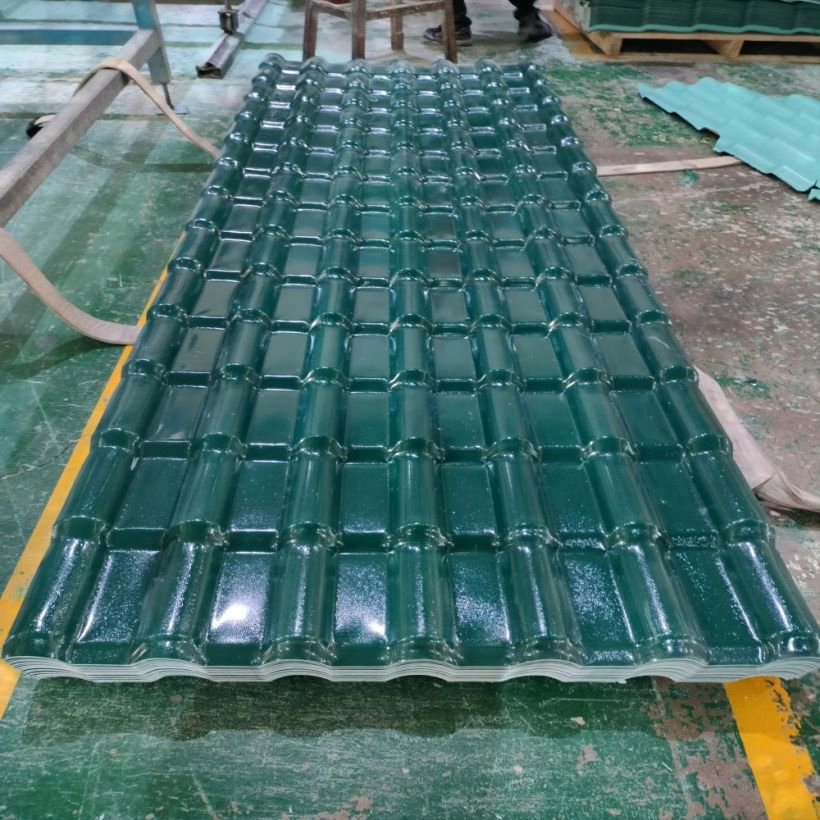

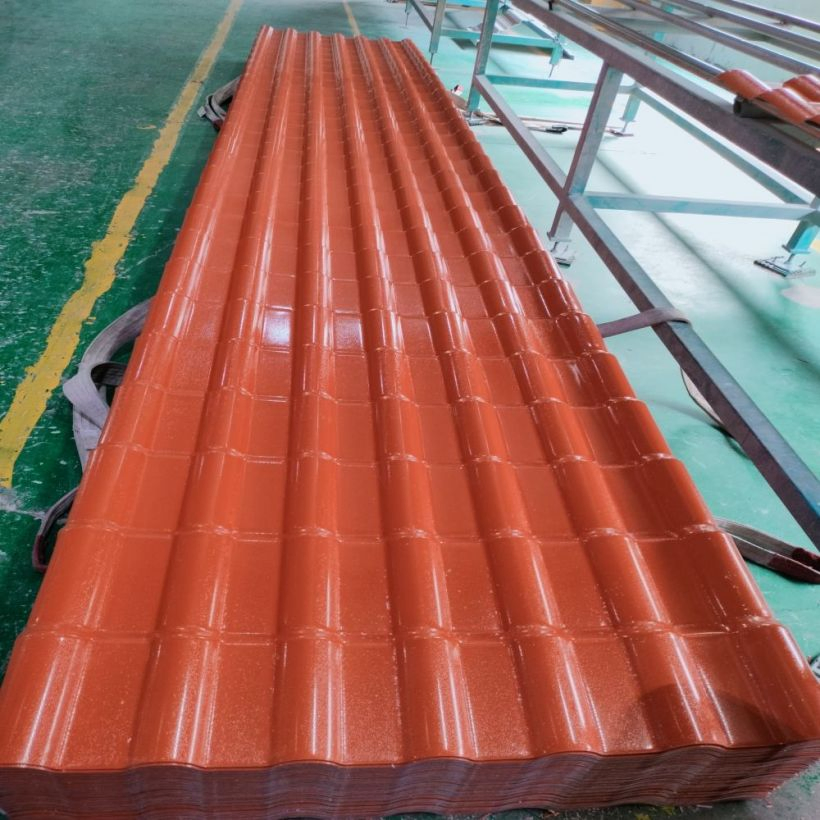

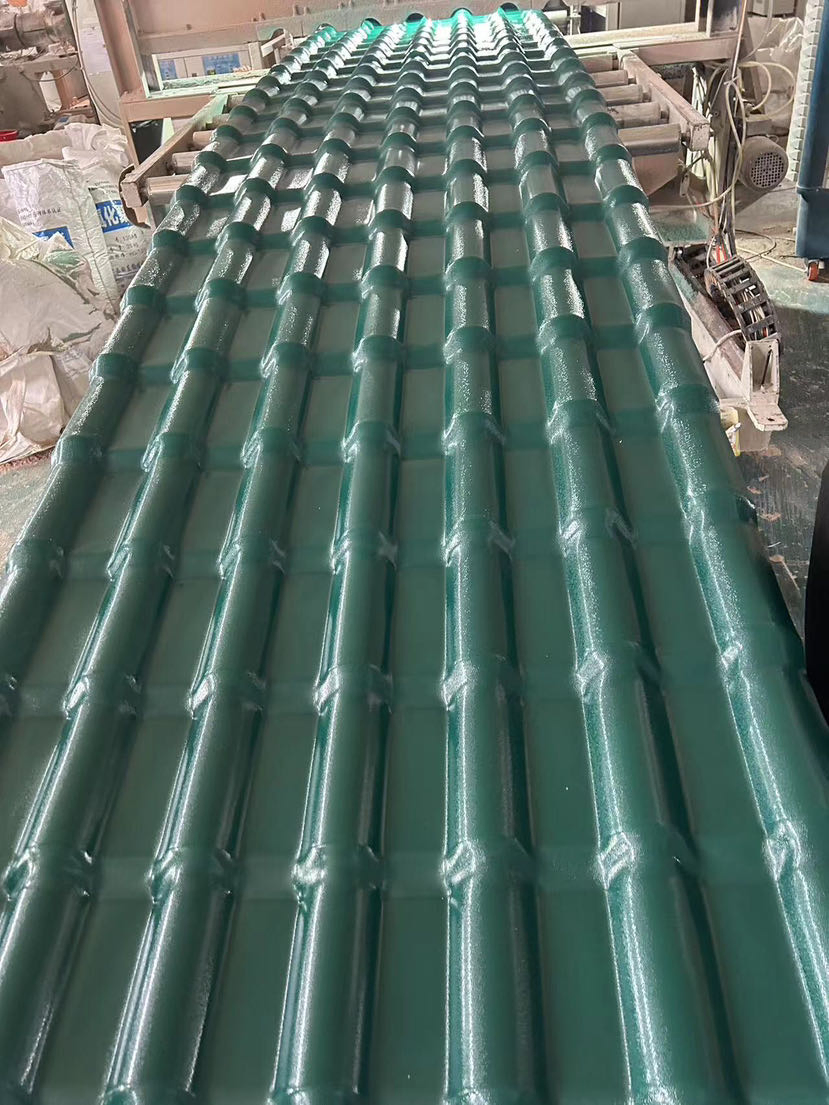

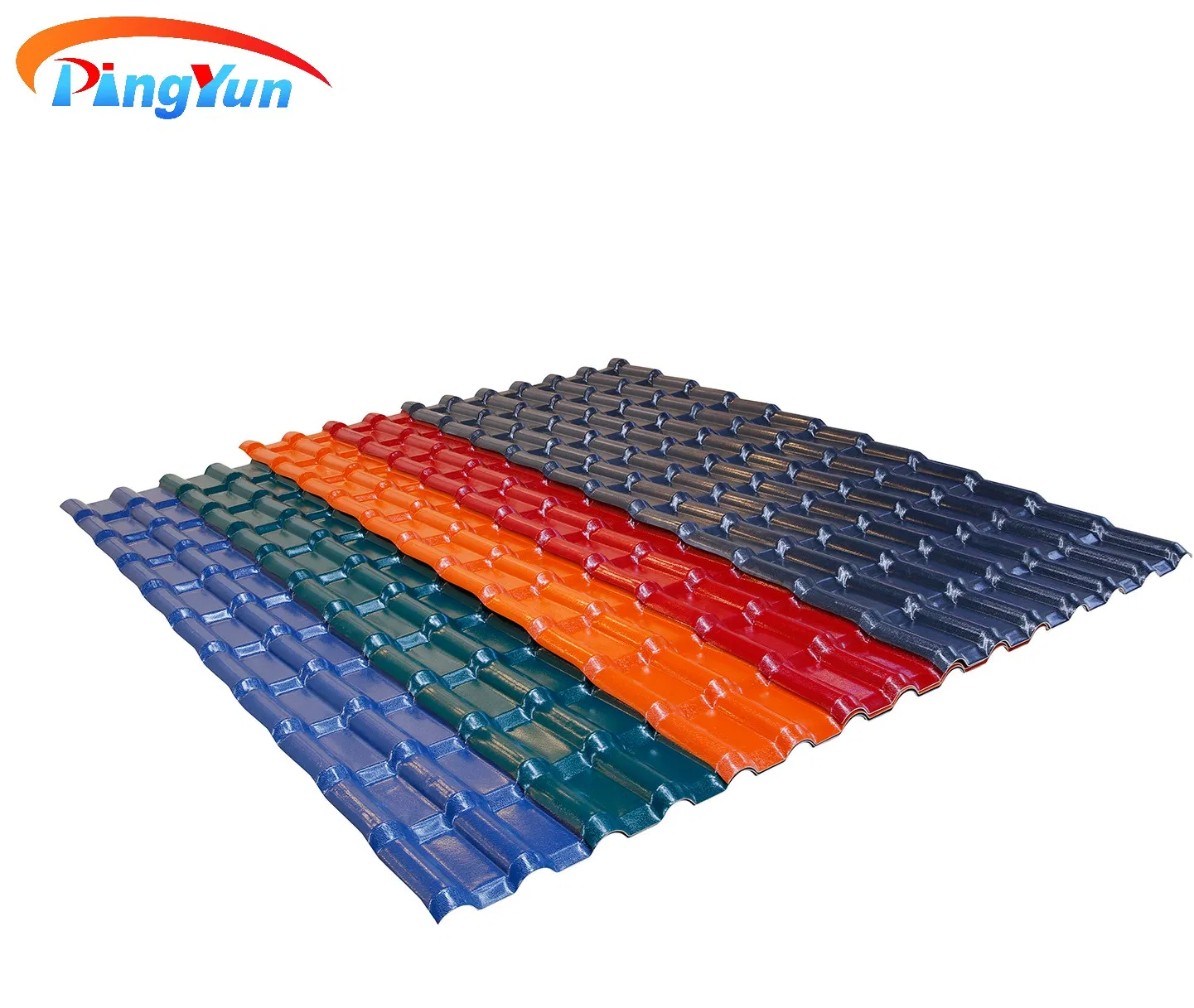

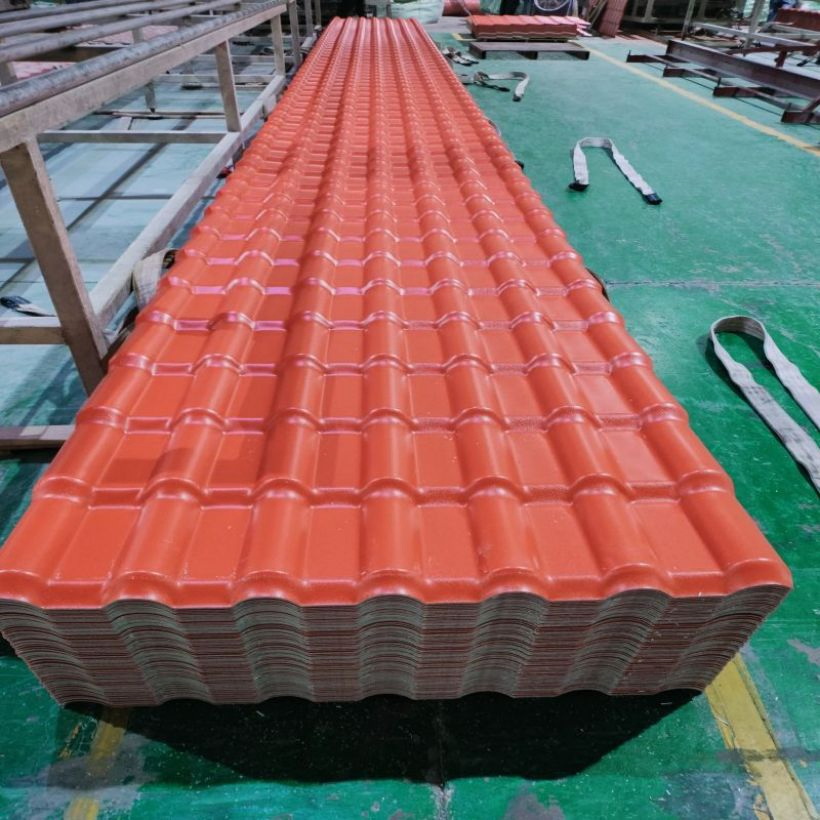

ASA Corrugated PVC Roofing Sheet UPVC Roof Heat Resistant Traditional Design Spanish ASA UPVC Roof Tile

Still deciding? Get samples of $ !
Order Sample

Product Description

🔹 Basic Information
Model NO. Spanish ASA UPVC sheet R1050
Material ASA PVC
Type Plain Roof Tiles
Shape Arched
Thickness 2.2mm, 2.3mm, 2.5mm, 3.0mm
Width 1050mm
Length Max 11.826m
Application Residential House, Villa, Pavilion, etc.
📦 Product Description

Spanish ASA UPVC roof tile R1050 is a modern design that serves as an excellent replacement for traditional Spanish clay roof tiles. With a width of 1050mm and customizable lengths (multiples of 219mm), it is perfectly suited for residential housing.

Key benefits include significant cooling cost savings and a lofty, tidy aesthetic for any building.

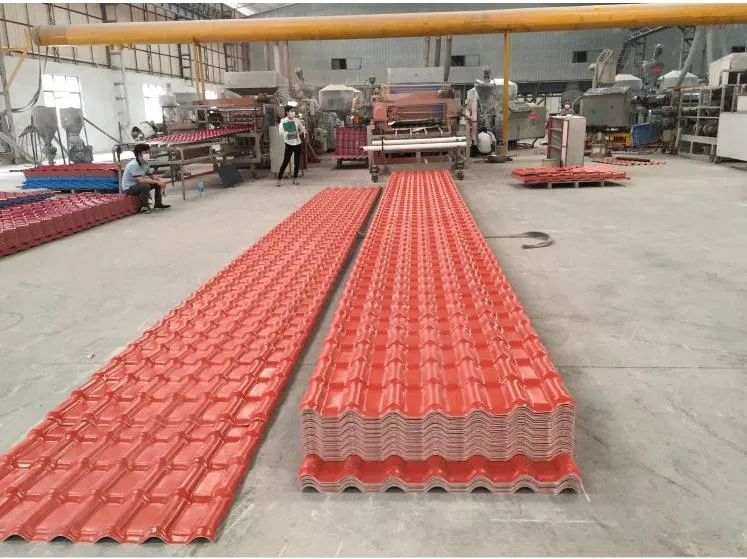

ASA UPVC Roof Tile Design

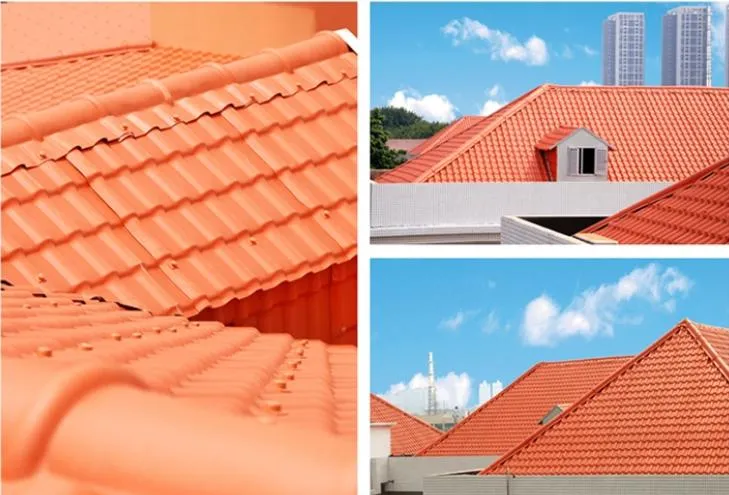

ASA UPVC Roof Project

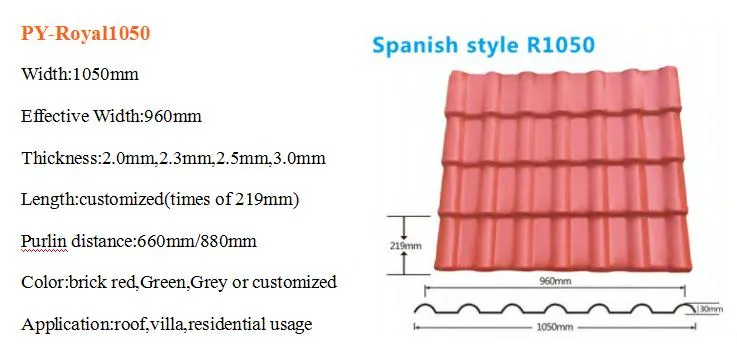

📊 Technical Data
Technical Specifications
MOQ500 Square meters
Warranty20 years
Container Capacity4500-10000 Square meters
Screws & Caps4 sets per square meter

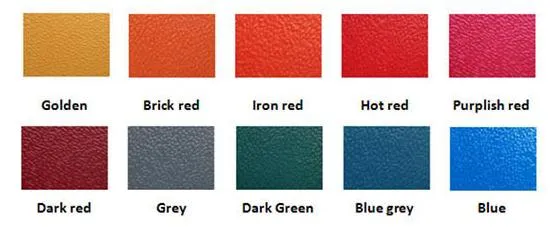

Common Colors
🌟 Key Advantages

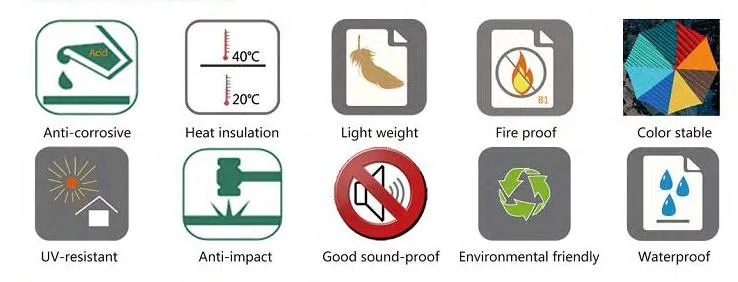

Advantages Overview
🌡️ Heat Insulation The indoor/outdoor temperature difference can reach 8 to 10°C.
🔥 Fire Proof Safety building material compliant with standard fire protection grades.
🎨 Color Stable ASA coating ensures bright colors remain stable under intense sunshine.
🛡️ Anti-Corrosive Highly resistant to chemical corrosion from acids and alkalis.
💪 Anti-Impact Excellent load-bearing performance; can withstand up to 150kg weight.
🔇 Sound Proof Reduces noise by up to 30db compared to steel roofing during rain.
🛠️ Installation Guide

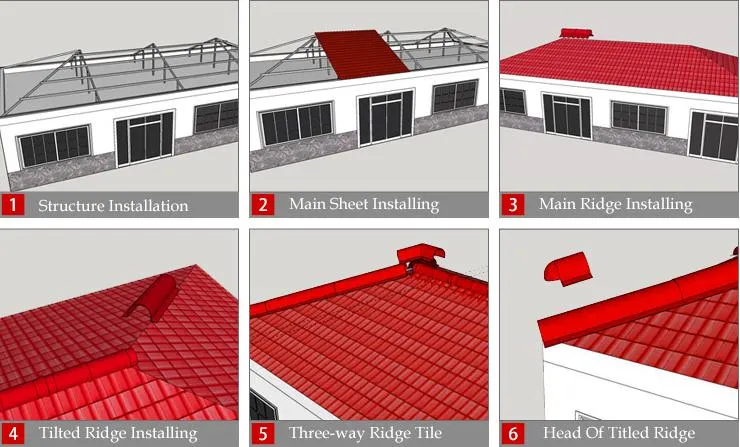

Installation 1

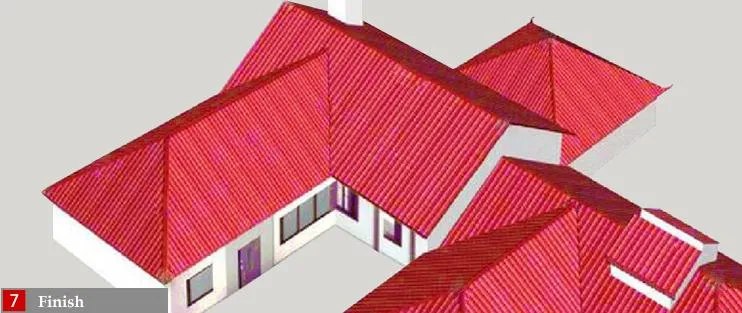

Installation 2
1. Ridge Installation: 3-way ridge elements for linear four-slope joints.
2. Overlap Rule: Overlap by one wave and assemble as closely as possible.
3. Purlin Spacing: 800mm for 2.5mm thickness; 1000mm for 3.0mm thickness.
4. Ridge End Caps: Insert and fix caps after assembling side ridges.
🏭 Production & Quality

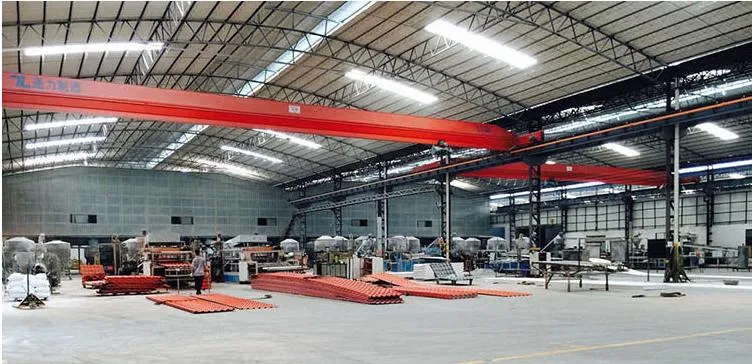

Factory Capacity
  • Scale: 25,000m² facility with 22 production lines.
  • Capacity: Monthly output of 100 containers.
  • Service: OEM mold support and detailed installation guides provided.
  • Control: Strict multi-link quality control during production and loading.
❓ Frequently Asked Questions
Q1. Can I have a sample? A: Yes, free samples are available. We only require the customer to cover the express freight costs.
Q2. What is the delivery time for mass production? A: For orders up to 10,000 square meters, production typically takes approximately 10 days.
Q3. What colors can you produce? A: We offer common colors like white, blue, brick red, green, and grey. Custom colors can also be produced upon request.
Q4. What is the maximum length available? A: Lengths are customizable. Maximum is 5.8 meters for 20ft containers and 11.8 meters for 40ft containers.
Q5. What are the main applications of these roof sheets? A: They are ideal for farm construction, warehouses, factories, villas, residential houses, and commercial wineries.
Q6. Do you provide different styles? A: Yes, we provide Spanish and Roma styles for residential use, and trapezoidal or wave styles for industrial warehouses.
